Knitted product manufacturing, from sweaters and collars to shoe uppers and technical textiles, depends on weft knitting equipment whose capability shapes output, cost and quality. Buyers usually face the same fork in the road: keep the simpler manual and mechanical machines that served small workshops for decades, or move to computerized models that promise higher output and greater design freedom at a higher price.
Manual knitting machines rely on an operator to select needles, move the carriage and change patterns by hand or through a mechanical pattern device, while computerized knitting machines use programmed electronic needle selection and servo driven carriages to do the same work automatically. Manual machines win on entry cost, repair simplicity and hands-on control, and computerized machines win on speed, consistency, pattern capability and the number of machines one operator can run. There is no universal winner, only a fit between machine capability and a production profile.
The sections below explain how each type forms fabric, compare them on measurable parameters, and set out a practical way to choose between them.

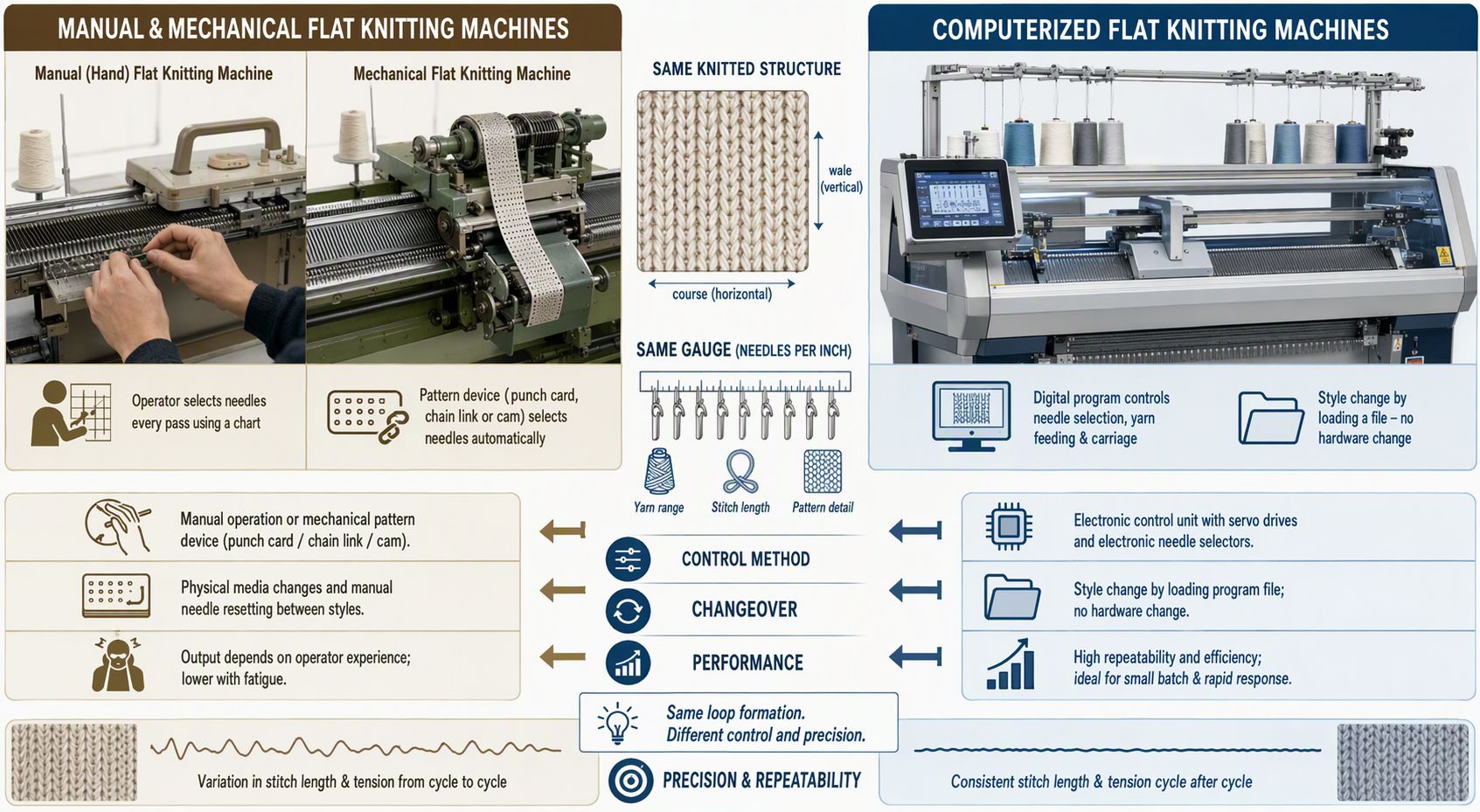

Both types produce weft knitted fabric by interlooping yarn on a bed of latch needles, and the structures they create are identical, with horizontal courses intermeshing with vertical wales. The difference lies in control: manual machines depend on the operator or a mechanical pattern device to decide which needles knit, while computerized machines follow a digital program that drives needle selection, yarn feeding and carriage movement.
Needle bed density is expressed as gauge, the number of needles per inch of bed width, and it sets the yarn range, stitch length and pattern detail available for both machine types equally. What separates the two families is not the physics of loop formation but the mechanism that positions needles, and how precisely knitting parameters repeat from cycle to cycle.
On a hand flat machine the operator traverses the manual flat bed knitting machine carriage across the bed, pulling individual needles into working position according to a chart for every pass, so output rises with experience and falls with fatigue. Mechanical machines improve on this with punch cards, chain links or cam arrangements that select needles automatically, but they still require physical media changes and manual needle resetting between styles.
A computerized flat knitting machine replaces the pattern device with a control unit, servo drives and electronic needle selectors, storing pattern data, stitch length, takedown tension and carriage speed as programs. Multiple systems allow more than one function per traverse, and because a style change means loading a file rather than replacing hardware, the computerized flat knitting machine holds a decisive advantage in small batch and rapid response work.
Component | Function |
Needle bed | Holds needles at precise spacing and defines machine gauge |
Knitting needles | Latch hooks that hold and form individual loops, one stitch per needle |
Sinkers | Hold the previous loop while a new loop is drawn through |
Carriage or cam box | Traverses the bed and drives needle movement for each pass |
Yarn carriers and feeders | Deliver yarn at controlled tension to the active needles |
Take down and roller system | Applies tension to pull finished fabric away from the bed |
Yarn clamps and cutters | Grasp and sever yarn at the start and end of a sequence |
Needle selection mechanism | Decides which needles work in a pass, mechanical or electronic |
Drive and control system | Provides carriage motion and, on computerized models, program execution |
Pattern software and interface | Stores, edits and transfers knitting programs to the machine |
The final two rows are where the families diverge. A manual machine makes selection a mechanical or human act, whereas a computerized machine inserts an electronic control layer that carries the loops, courses and wales of knitted structure from a file into repeatable fabric.
The difference between hand knitting and machine knitting is structural rather than a matter of speed. In hand knitting two needles hold the live stitches and loops transfer one at a time across the row, while on a machine every loop sits on its own needle and a full course forms in a single carriage pass, which is why hand techniques such as cable twists and open lace resist reliable machine reproduction.

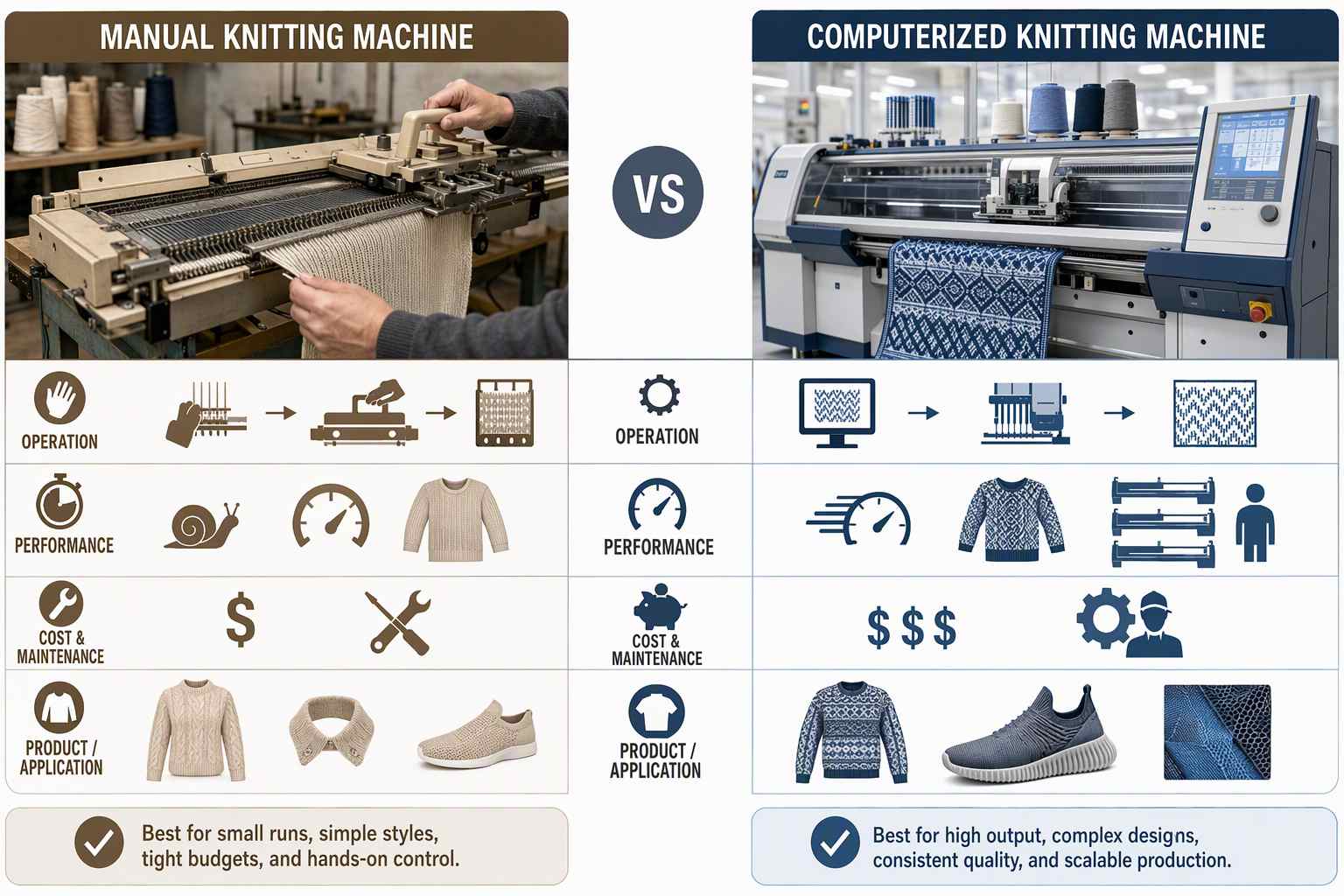

On most measurable production parameters computerized machines outperform manual machines, with the widest gaps in output, changeover time and operator to machine ratio. The narrowest gap is finished quality on simple structures, where a skilled operator can match a programmed machine over a short run.
Parameter | Manual knitting machine | Computerized knitting machine |
Carriage speed | About 0.4 to 0.8 m/s, operator limited | About 1.2 to 1.6 m/s |
Daily output per machine | Commonly 5 to 15 simple garments | Commonly 30 to 50 simple garments |
Pattern changeover | 15 to 60 minutes, using cards or manual needle resetting | About 1 to 2 minutes, loading a program file |
Operator to machine ratio | 1 to 1, up to 1 to 3 | 1 to 4, up to 1 to 6 |
Material waste | Typically 10 to 20 percent | Typically 5 to 8 percent |
Usable gauge range | About 3G to 14G, model dependent | About 3G to 18G and finer |
Programmable stitch functions | Basic structures, limited transfers | Full range including jacquard, intarsia, transfer and tuck |
Defect detection | Visual inspection by the operator | Needle break sensors, yarn break detection, automatic stop |
Pattern storage | Punch cards, chains, charts, operator knowledge | Digital pattern library and software |
Energy use per garment | Higher per unit of output | Lower per unit of output |
The classification terms behind the table follow the international vocabulary for knitting machines, which groups them by needle arrangement and needle movement, as set out in ISO 7839:2005 on knitting machine vocabulary and classification. Reading the numbers as a shopping list is a mistake: a flat knitting machine running at double the carriage speed produces nothing if the order book cannot keep it fed, and the parameters matter only because they translate into cost per garment at a specific volume and order mix.

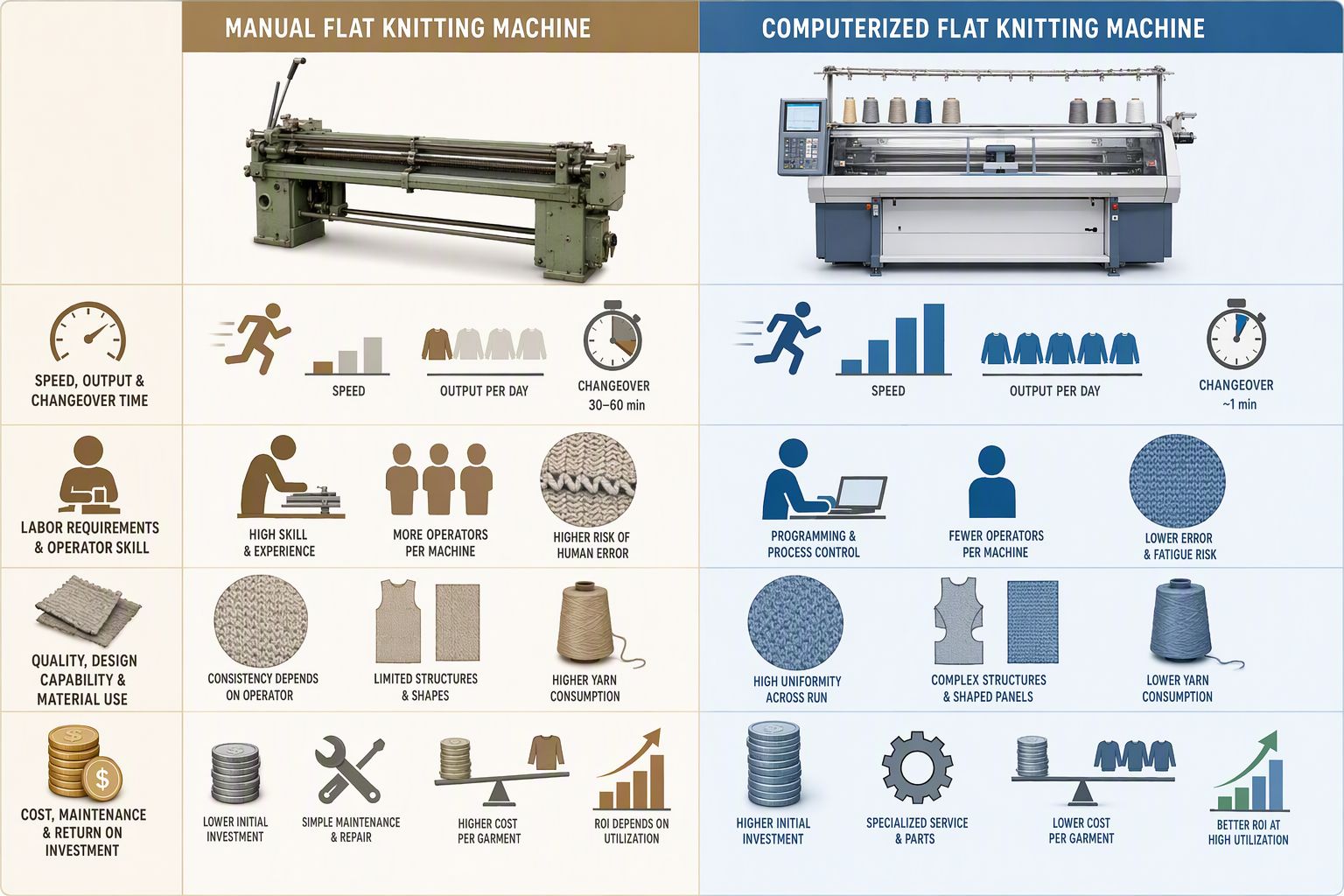

Computerized machines knit faster and lose far less time between orders. Carriage speed typically doubles or triples, daily output per machine is commonly several times higher, and changeover falls from tens of minutes to about a minute, which is what makes small batch production viable.
Output depends on panel size, yarn count, stitch structure, number of systems and time lost to takedown and yarn changes, so a coarse gauge machine knitting plain panels will always out produce a fine gauge machine working a dense jacquard. Computerized machines hold their speed settings automatically, and with a wider operator to machine ratio a small team covers capacity that would otherwise need a much larger floor staff.
On a manual machine a new style means replacing cards, resetting needle selection and knitting sample panels to confirm stitch length, which consumes machine hours before a sellable piece exists. On a computerized machine the file loads and a reference panel appears within minutes, an advantage that often outweighs raw knitting speed for factories working on frequent style changes.
Manual machines demand skilled hands and reward experience, while computerized machines shift the skill requirement from dexterity to programming knowledge and process control. Computerized machines also cut the operators needed per machine and reduce errors caused by fatigue or inattention.
A manual machine operator builds speed and pattern competence over months and years, and that competence is hard to replace because quality is a function of the person at the carriage. Computerized machines move the critical skill into pattern engineering, parameter selection and maintenance, so a factory needs a technician rather than a bench of veterans.
A manual machine normally occupies one operator, and a highly skilled operator may attend two or three, while computerized machines are routinely supervised at one operator to four or six because the machine monitors yarn breaks and needle damage and stops on a fault. Automation removes execution errors but not setup errors, so parameters must still be verified before each run.
Computerized machines produce more uniform fabric across a run and support structures and shaped panels that manual machines cannot execute reliably, while reducing yarn consumption through tighter parameter control. Manual machines can produce excellent fabric, but consistency depends on the operator rather than a stored program.
Fabric from a manual machine varies between operators, between shifts and across the length of a long run, because stitch length and takedown tension are set by hand and drift with fatigue. Computerized machines recall identical values for every piece, which matters most in contract manufacturing, where brands reject batch to batch deviation.
Simple ribs, basic jacquard, cables and straightforward shaping remain achievable by hand, but multi colour jacquard, intarsia, intricate transfers and fully fashioned shaping become laborious because every row needs intervention. Computerized machines execute those functions as programs, and higher end models knit shaped panels or complete seamless garments in one piece, widening the orders a factory can bid for.
Cut and sew production from flat knitted panels typically wastes 10 to 20 percent of fabric area in cutting, with manual operations at the higher end, while shaped and near net shape knitting reduces that to roughly 5 to 8 percent. Automated tension monitoring and automatic stop on a flat knitting automation system also cut the rework losses that follow an undetected fault.
Manual machines cost far less to buy and are simpler to repair, while computerized machines cost more upfront but usually deliver a lower cost per garment through higher output, fewer operators, less waste and faster changeovers. Payback depends almost entirely on how close to full utilization the machine runs.
Price is driven by gauge, bed width, number of knitting systems and installed devices such as jacquard selection, intarsia equipment, extra feeders and automatic takedown, which places manual and mechanical machines at the low end of the scale. Computerized machines add software, control electronics, servo drives and operator training, so cost is better judged per garment than per machine.
Manual machines wear mechanically and their consumables are inexpensive, covering needles, sinkers, cams, belts, oil and cleaning. Computerized machines need the same mechanical care plus attention to control boards, servo drives, sensors and software support, and because a fault in that layer can stop production entirely, technician availability and the flat knitting machine spare parts supply chain deserve as much scrutiny as the specification.
Whether a knitting machine is worth buying depends on how well its capability matches the work available, not on the machine category alone. These questions usually settle the decision.
What is the expected order volume, and how evenly is it spread across the year.
What is the typical order size, since frequent small batches favour fast changeover.
How design intensive is the product range, and how often do patterns change.
How much skilled labor is available, and at what cost.
What quality standard must be met, including batch to batch consistency.
How much capital is available, and what payback period is acceptable.
Who will maintain the machine, and how quickly can spare parts be obtained.
Answers pointing to steady volume, repeatable quality and complex designs make the investment straightforward, while low, irregular volume and simple products favour a lower cost machine or outsourced knitting.
Manual machines suit low volume, simple, cost sensitive or craft oriented work and remain useful as a low cost capacity backstop, while computerized machines suit commercial production needing volume, repeatable quality, frequent pattern changes or complex structures. Many factories deliberately run both.
Where volume is high, lead times short and quality standards contractual, computerized machines are the practical baseline because operator ratio, changeover speed and defect detection affect the cost of every unit shipped. A common arrangement is a mixed fleet, with high end computerized machines reserved for complex or seamless products and simpler machines covering plain, high volume items.
For home and small studio use the determining factors are budget, available space, output actually needed and appetite for learning pattern software. A manual or mechanical flat bed machine covers scarves, swatches, simple panels and small accessory runs at low cost, and its limits appear only when fine gauge fabric, complex jacquard or shaped garments are required.
Evaluating either machine type follows the same checklist, and the answers should be in writing before a purchase is confirmed.
Gauge, matched to the yarn count and fabric weight of the intended products.
Bed width, matched to the largest panel or garment dimension.
Number and type of knitting systems, which sets output and available stitch functions.
Stitch capability and installed devices, checked against the actual pattern library.
Programming software, file compatibility and whether patterns import from existing systems.
Spare parts availability, service response time and technician support in your region.
Installation, commissioning and operator training included in the offer.
Power supply, air supply and environmental requirements against actual site conditions.
Warranty terms, coverage of control electronics and software update policy.
These questions cover retrofit decisions, site infrastructure and machine service life, which sit outside the core performance comparison but frequently decide whether a purchase proceeds.
Retrofit is rarely economic, because the mechanical architecture of a manual or punch card machine, including needle selection, carriage drive and tension control, is not designed for electronic actuation and a conversion replaces most working elements and the entire control layer. On industrial machines, replacing the unit while retaining needles, spare parts and operator knowledge is almost always more practical.
Industrial machines generally need a stable three phase supply of adequate capacity, and many models use pneumatic actuators for yarn clamps, cutters or takedown, which calls for clean, dry air. Temperature and humidity also change yarn friction, static behaviour and tension stability, affecting stitch length and fabric weight, so mills working to tight specifications often control humidity in the knitting hall.
Manual and mechanical machines can remain productive for decades, because needles, sinkers and cams are consumables with long term availability and little else cannot be repaired or replaced. Computerized machines commonly serve about eight to fifteen years, since control boards, servo drives, sensors and software support reach end of life long before the frame and needle beds.
