Patterned knit fabric once meant a detour through printing, embroidery, or jacquard weaving, with the design resting on the surface rather than inside the cloth. Circular machines made plain fabric cheap and fast, but for years the tube could carry little beyond stripes. Modern equipment closes that gap: logos, geometric repeats, and near-photographic motifs now come off the cylinder as part of the structure, at speeds weaving cannot match. The question buyers ask most often is mechanical. How can a machine that only moves needles up and down decide, thousands of times per minute, which stitch belongs to which part of a design?
A circular jacquard knitting machine creates complex patterns by giving every needle in the cylinder its own instruction at every feed. A stored pattern file is translated into needle-by-needle selection commands, and at each rotation the machine decides whether a needle knits a new loop, tucks the incoming yarn into an existing loop, or stays down and lets the yarn float behind the fabric. Different feeders supply different colors, so needle position and yarn color together build the motif course by course, while the tube forms continuously.
The mechanism is easier to follow in four layers: the machine that forms the tube, the selection system, the yarn plan, and the physical limits that decide how far a design can be pushed.
A circular jacquard knitting machine is a circular weft knitting machine whose needles are selected individually rather than universally, so each needle can knit, tuck, or miss at each feed according to a stored pattern. The knitting action is ordinary; what changes is who decides which needle participates.

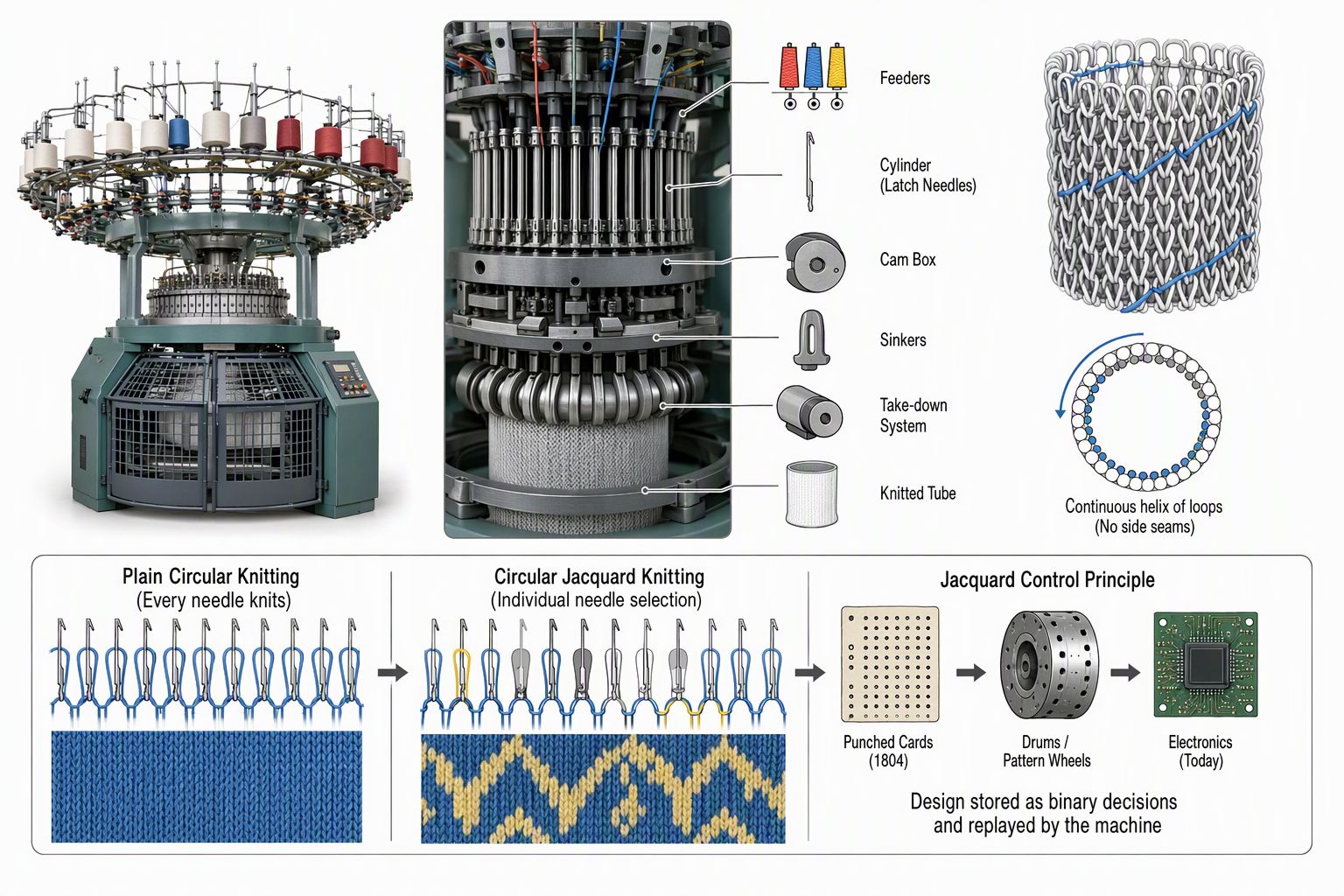

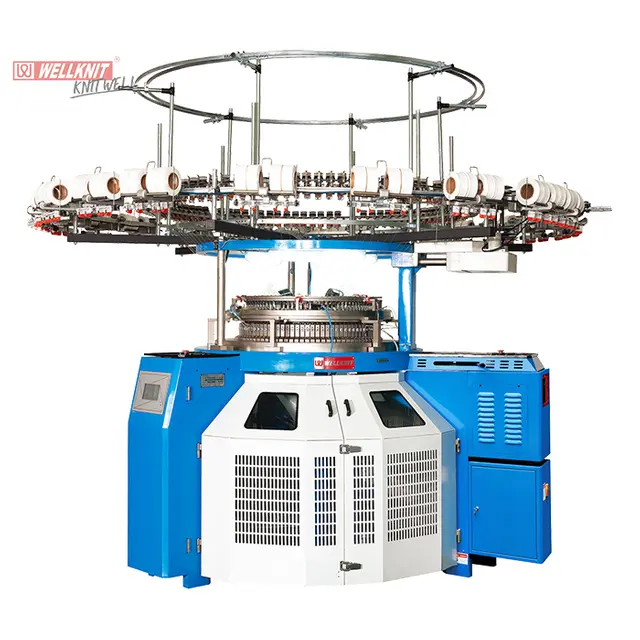

The frame carries a vertical cylinder of latch needles, a cam box driving them through the stitch cycle, sinkers that hold old loops down, a take-down system, and a ring of feeders. Single jersey machines use the cylinder alone; double jersey machines add a dial of horizontal needles, enabling rib, interlock, and two-faced structures. The tubular architecture follows the principle of circular knitting: a continuous helix of loops with no side seams.
On a plain circular knitting machine, every needle rises at every feed, so variation comes only from yarn color, stitch length, and gauge. A jacquard machine inserts a selection decision ahead of the cam, and the same cylinder can then produce a different stitch at every needle position in the same course. The cost is speed, because selection and color density both take time.
The word jacquard describes a control method, not a machine family. The original mechanism, patented in 1804 and documented in the history of the Jacquard machine, used punched cards to decide which threads moved. Knitting borrowed the idea, replacing cards with drums, pattern wheels, and finally electronics. What survives is the concept: a design stored as binary decisions and replayed by a machine.
The pattern exists first as a grid in which every cell equals one stitch, then becomes a selection file telling the actuators what to do with each needle at each feed. Knitting is that file replayed, course after course, around the cylinder.
A designer rarely supplies a file the machine can use. The artwork becomes a repeat that fits the available needle count and feeder logic, through three conversions:
Scale. The image is resampled to the stitch grid; a motif 300 stitches wide will not run on a cylinder offering 240 needle positions without losing detail.
Color separation. Each color becomes a selection layer, and where a color is absent the needle must float or tuck the yarn, which changes both faces of the fabric.
Backing. Bird's eye, tie-in twill, and float patterns are chosen here, because they decide stability, weight, and behavior after washing.
On a computerized jacquard circular knitting machine, the output is a machine file carrying speed limits, takedown tension, and per-feed yarn assignments. Without those settings a pattern file is not reproducible months later.
Each needle can occupy one of three working positions at each feed, and the combination across the cylinder is what the eye reads as a pattern.
Position | Needle action | Effect | Typical use |
Knit | Rises fully, clears the old loop, takes yarn | Visible face stitch in that color | Design areas, ground structure |
Tuck | Rises partially, holds the old loop | Adds texture and weight | Blister, piqué, honeycomb, tie-in |
Miss (float) | Stays low, takes no yarn | Yarn passes behind as a float | Color separation, mesh, lighter fabric |
The sequence is precise. As a needle approaches a feed, it is first selected to rise or hold its height. If it reaches the cam center, a second selection decides whether it continues to yarn-feeding height or stops. Knit needs both movements, tuck the first, float neither. After feeding, the cam guide lowers the knitting and tucking needles and returns every needle, floats included, to its starting height before the next feed. This two-stage arrangement, described in patented circular knitting selection methods, is what makes three-way patterning possible at production speed.
A 30-inch cylinder at 20 rpm carries roughly 300 needles past a feed in a fraction of a second. The controller reads cylinder position from an encoder, compares it with a zero-point reference calibrated at start-up, and fires each actuator milliseconds beforehand, at more than 1,000 selections per second. When synchronization drifts, a late selection turns a vertical line into a diagonal step, while a drifting zero point makes a pattern correct at the start of a roll and displaced further up the tube.
Color comes from the feeder plan, not the needle. Each feeder carries one yarn, and the selection system decides which needles take it and which let it pass behind, so a multi-color pattern is a coordinated set of single-color decisions at consecutive feeds.
Colors are produced by grouping feeders. A two-color machine pairs feeders so each pair supplies the two yarns of one design row, and the cylinder passes both in a single revolution. Four-color work uses groups of four. More colors per course means fewer pattern rows per revolution and lower output, so four colors is usually the practical ceiling for volume programs.
A striper swaps yarn at a feeder between revolutions, producing bands without extra feeds; combined with selection, it yields stripes that change width across the tube. Fabrics that depend on pre-colored yarn normally run on a yarn-dyed jacquard circular knitting machine, because the color must be in the yarn before the loop forms.
Every missed needle leaves a yarn crossing behind the fabric. Short floats are harmless; long floats snag, pull loops out of the face, and distort the fabric after laundering.
Mills manage this in three ways. The selection file can tie long floats down with periodic tuck stitches, which is the origin of the bird's eye backing on many two-color jerseys. The design can be redrawn so color areas interlock instead of sitting in isolated blocks. Or the backing can change entirely, for example a double jersey arrangement in which floats are trapped between two faces. Floats running beyond roughly five to seven needle spaces are usually tied or avoided.

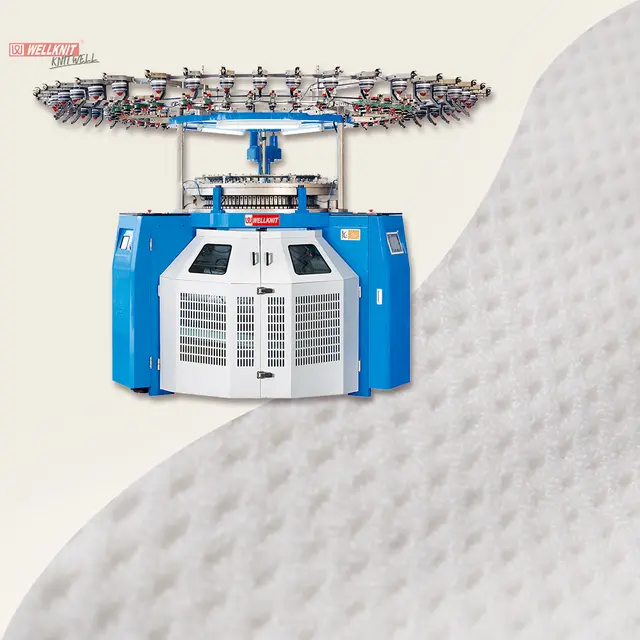

Aspect | Single Jersey Jacquard | Double Jersey Jacquard |
Needle sets | Cylinder only | Cylinder and dial |
Faces | One patterned face, floats behind | Two faces, floats hidden between them |
Signature structures | Color jacquard, mesh, piqué, terry | Blister, spacer relief, two-sided blocks |
Typical products | T-shirts, polo bodies, activewear | Sweaters, dresses, structured sportswear |
Mechanical systems store the pattern in physical elements such as pattern wheels, drums, or inserted pins, while electronic systems store it as data and drive piezoelectric or electromagnetic actuators. The difference appears in pattern size, changeover time, and how much of the design budget goes to setup.
Criterion | Mechanical | Electronic |
Pattern storage | Wheels, drums, chains, punched elements | Digital file in controller memory |
Pattern width | Limited by the physical selector | Limited only by needle count |
Pattern change | Mechanical changeover, hours | File load, typically minutes |
Best fit | Simple repeats, stable long runs | Frequent changes, complex motifs |
Electronic selection also enables functions unrelated to the image: stitch density by zone, speed reduction on complex courses, and fault logging that identifies the feed where a needle failed. For a plant running twenty pattern changes a month, those matter more than the maximum color count on the specification sheet.
Four constraints decide how complex a pattern can actually be: gauge, which sets resolution; feeder density, which sets available colors and pattern rows per revolution; float behavior, which sets how much color can be carried behind the fabric; and finishing response, which decides whether the motif survives dyeing and heat.
Gauge is the number of needles per inch of cylinder circumference, and it behaves like pixel density. A 24-gauge machine gives fine edges and small lettering; a 14-gauge machine gives bold shapes and heavy yarns. Detail beyond the gauge cannot be recovered in finishing, and forcing a fine motif onto a coarse machine produces a stepped, unreadable edge.
Jacquard machines carry fewer feeders per inch than plain machines, because each feed needs space for actuators and yarn paths, and color groups consume feeders in blocks.
Parameter | Plain Single Jersey | Electronic Jacquard |
Feeds per inch | Roughly 3.0 to 3.5 | Roughly 2.0 to 2.8 |
Cylinder speed | Roughly 30 to 40 rpm | Roughly 16 to 24 rpm |
Colors per course | One | Two to eight |
Relative capital cost | Base | Two to four times base |
A machine at 18 rpm with 2.4 feeds per inch will not match a plain jersey unit, and quoting patterned fabric at plain fabric prices is one of the most common costing errors in the sector. The premium has to come from the fabric.
A knitted motif is not a printed image; it is a structure that moves. Cotton jerseys shrink lengthwise after washing, elastane blends relax, and heat setting can shift synthetic dimensions by several percent. A circle that looks correct on the machine can read as an oval after finishing, and registration shifts when one yarn shrinks differently from another.
Quality is held by approving a finished swatch rather than a machine preview, by controlling the mechanical condition of the cylinder and needles, and by treating the pattern file as a controlled document. A perfect file on a worn machine still produces a defective pattern.
A new motif should be knitted, finished by the intended route, and inspected on both faces for registration, float length, color separation, edge behavior, weight, and shrinkage. Only the finished swatch shows what the fabric will look like in a garment.
Needles with worn latches or damaged hooks produce dropped stitches and misplaced selection that appear as random flecks in a flat color area, and cylinder wear changes needle height, which changes loop length and the apparent size of the motif. Replacing needles by hours run rather than by failure is cheaper than sorting fabric afterwards, and keeping circular knitting machine spare parts of the correct gauge on site shortens downtime when a feed fails mid-roll. The pattern file itself belongs in a record with machine model, gauge, diameter, feeder layout, yarn map, and revision number.
The fabric decides the configuration, not the reverse. Each structure family needs a specific combination of needle sets, selection positions, and feeder arrangement, and a machine more capable than the fabric requires only adds cost.

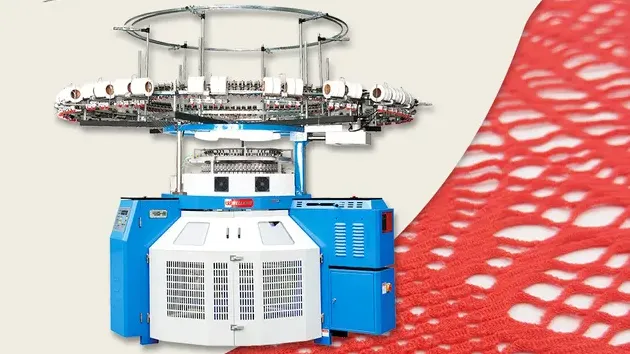

Fabric Structure | Configuration Needed | Selection Requirement |
Two-color graphic jersey | Single cylinder, paired feeders | Two-way or three-way selection |
Blister and raised relief | Cylinder plus dial | Tuck and knit on both needle sets |
Bird's eye backing | Single cylinder | Miss with periodic tie-in tucks |
Mesh and openwork | Single cylinder, specialist models add transfer | Knit, tuck, miss with transfer |
Terry jacquard | Cylinder with synchronized sinker and loop control | Selection on loop-forming needles |
Four questions narrow the choice faster than any brochure: which structures must run on the machine over the next three years, the finest detail the buyer will order, how many colors per course appear in the current range, and how often the pattern will change. The answers set gauge, feeder count, color group size, and control type, in that order.
It does not need to repeat, but it must fit inside the available needle count. Electronic selection removes the mechanical repeat limit, so a motif can be placed once across the full circumference. A design wider than the needle count is scaled down or split into panels, and the split points become a design decision rather than a technical accident.
Jacquard carries unused yarns behind the fabric as floats and produces a continuous tube. Intarsia introduces and withdraws separate yarns at color boundaries so no floats cross the back, giving a cleaner reverse face and lower weight, but it needs specialized yarn-carrier control and runs far slower. Most circular patterned fabric is jacquard; intarsia on a circular machine is a niche capability.
They do. Long floats reduce stretch recovery in that zone, can be pulled out by abrasion, and trap heat differently from the face. Fabrics for close-fitting or high-friction use usually use shorter floats, tie-in tucks, or a double jersey construction that conceals the yarn between two faces.
