What Is an Auto Striper Circular Knitting Machine?

Striped knitwear sells at every price point, yet it is awkward to produce at speed. A conventional circular machine carries one package per feed, so a new color means stopping the cylinder, cutting the yarn, threading a fresh package and restarting. Every stop leaves a mark in the fabric, a tail on the reverse and a band edge that has to be inspected before the roll is released.

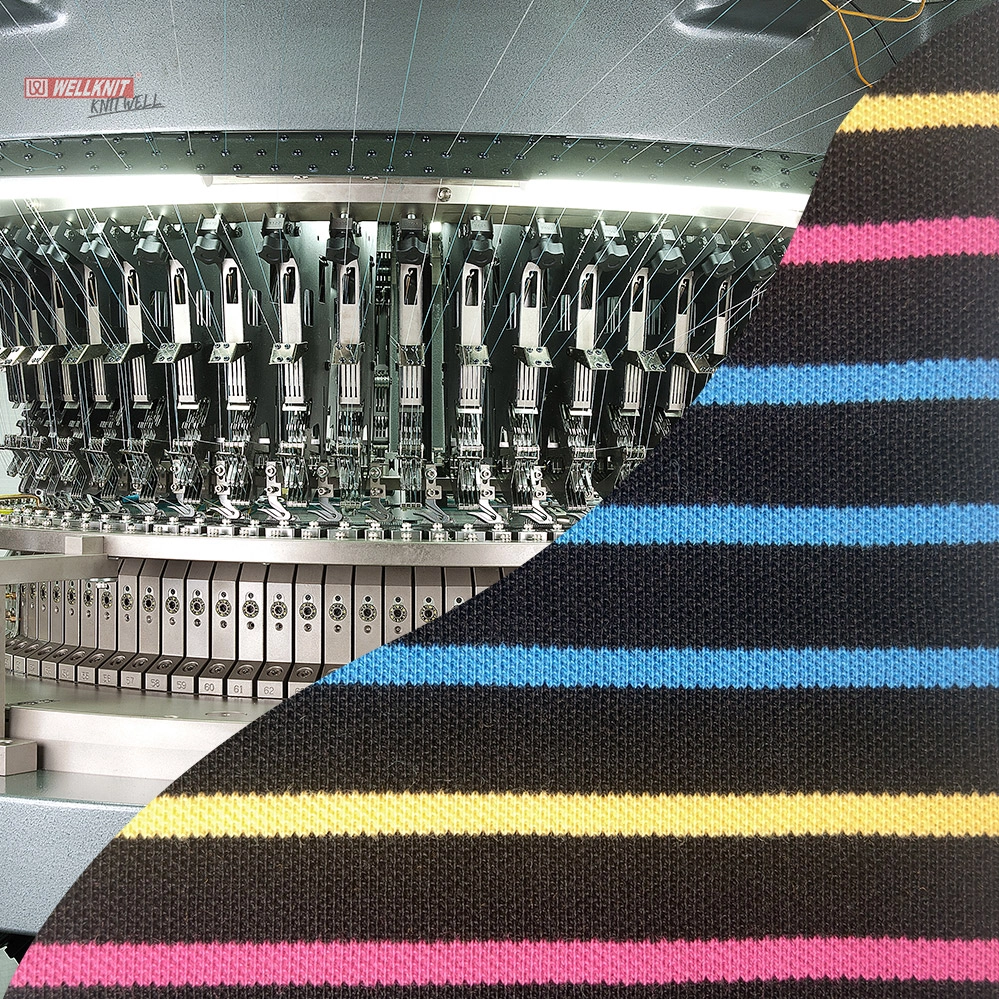

An auto striper circular knitting machine is a circular weft-knitting machine whose feeds are each fitted with an automatic striper head, so several colored yarns can be presented to the needles in a programmed sequence and horizontal stripes are knitted continuously, without stopping the cylinder or threading packages by hand.

This guide explains how the head changes color mid-roll, where the machine sits in the circular knitting family, and which specifications decide whether a build can produce your stripe.

What Is an Auto Striper Circular Knitting Machine?

It is a standard circular knitting machine with a color-selection layer at every feed: the cylinder, needles and cams stay conventional, while a finger box at each feed decides which of four or six threaded yarns reaches the needles during each revolution.

The base machine works as any circular weft knitter does, as the standard description of circular weft knitting sets out: needles stand in a slotted cylinder, cams drive each through knit, tuck and miss, and positive feeders deliver yarn while the take-down pulls the tube away. A plain machine carries one package per feed, so color is fixed for the whole roll; a striper replaces it with a bank of packages, one per finger.

Because the change is a yarn-presentation event rather than a needle-selection event, the machine keeps the speed and cam design of its base model. That is why stripers dominate striped jersey, pique and rib: multi-color patterning without the electronics or lower running speeds of per-needle selection. Supplier catalogues usually group auto striper circular knitting machine models into single and double jersey versions on the same chassis.

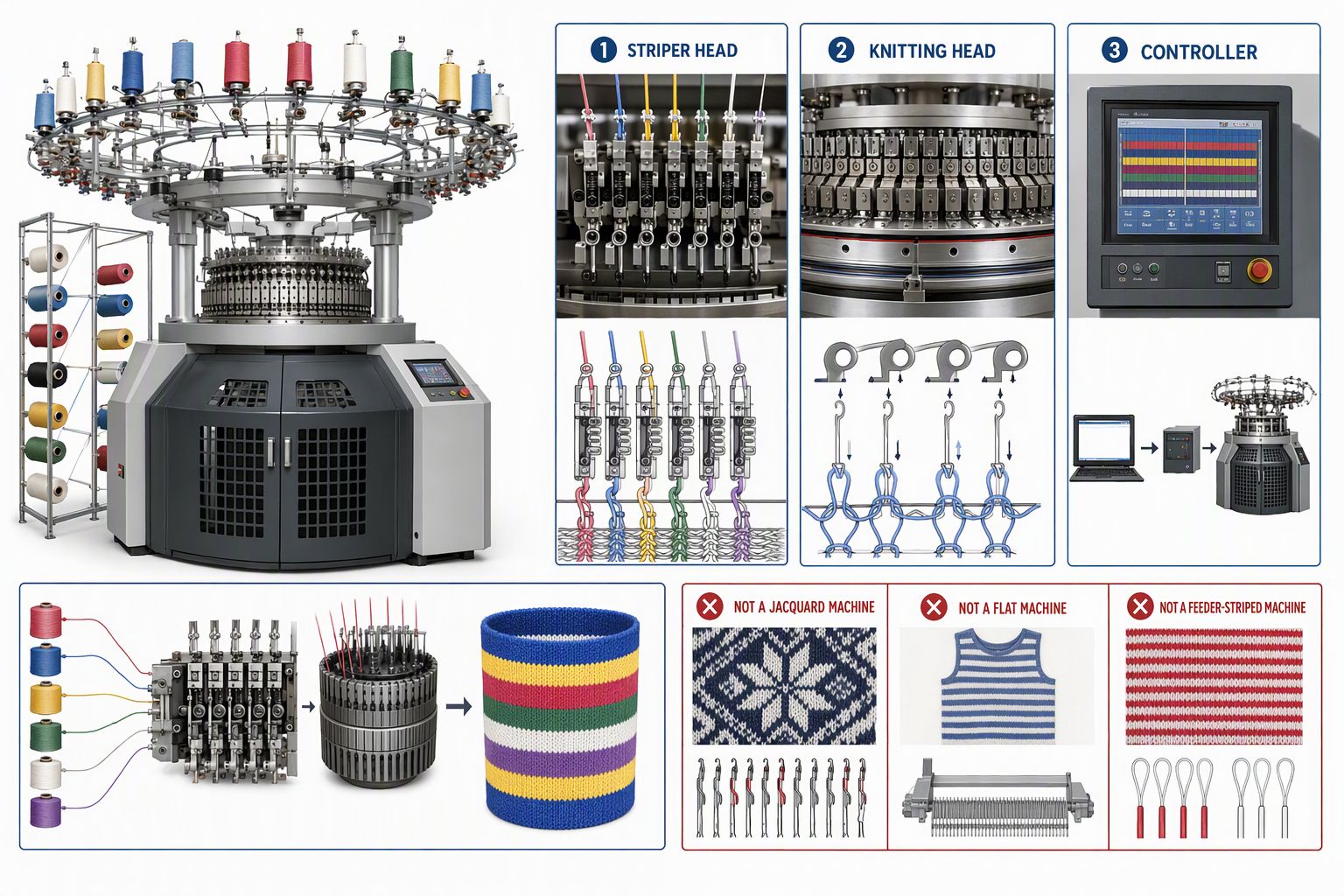

The Three Systems Behind Automatic Striping

The striper head holds four or six spring-loaded fingers per feed, each with its own eyelet, clamp and cutter, and it alone touches the color decision. The knitting head, meaning cylinder, needles, cams and the dial on double jersey models, forms the structure and sets weight and gauge. The controller counts courses, stores the repeat and transfers files. All three must agree, because fingers beyond the controller's repeat capacity buy nothing.

What an Auto Striper Is Not

• Not a jacquard machine, because it has no individual needle selection, so logos and motifs are out of range.

• Not a flat machine, because it knits a continuous tube rather than shaped panels.

• Not a feeder-striped machine, which fixes colors to individual feeds and produces only very thin stripes.

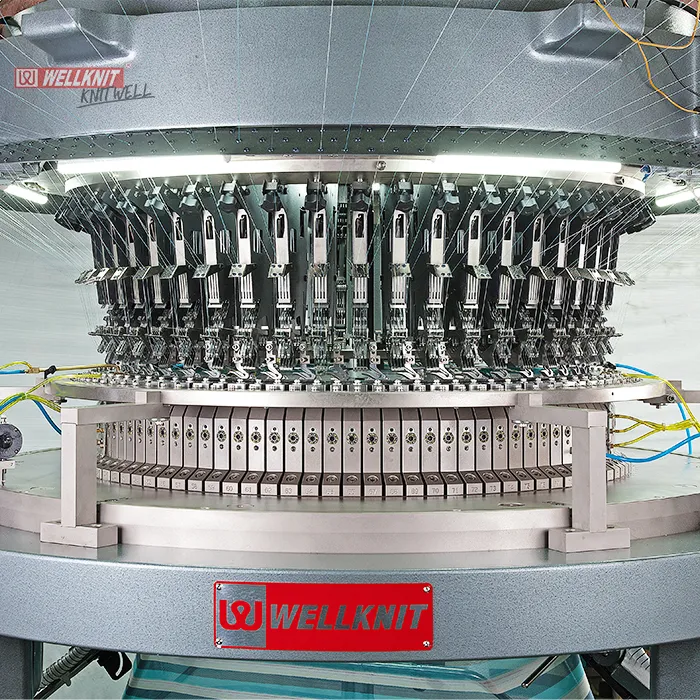

How Does the Striper Head Change Color Without Stopping?

The change is a timed yarn handoff: at the programmed course count an actuator at every feed releases the running finger and engages the next, while the outgoing yarn is clamped, cut and trapped within the same revolution, so the band stays level around the tube.

Finger Box and Actuator Selection

Each finger is a small lever with a butt at its base, held back by a spring and advanced only when the actuator strikes that butt. Unselected fingers stay parked with their yarn clamped, so a color can sit idle for hundreds of courses and still re-enter cleanly. Selection is piezoelectric or electromagnetic and timed to cylinder rotation. Published knit design guidance treats four-finger selection per feed as the standard auto stripe arrangement, which caps a full-width band at four colors unless the head is built with six. On a single jersey auto striper the head sits directly above the knitting point, keeping the yarn path short and steadying tension at the boundary.

Clamp, Cut, and Trap: Where Stripe Quality Is Decided

The outgoing yarn is cut at a fixed distance from the needle and trapped so it can be picked up again later. Cut too long and the tail shows on the reverse of a single jersey fabric; cut too short and the yarn has no reserve when reselected, which opens a hole at the boundary. A weak clamp lets the yarn retract toward the feeder, so the next selection arrives late. Yarn dust and wax packing the finger box cause the actuator to miss a butt, the most common striper-specific fault on a running machine.

Why Stripe Depth Is Counted in Courses, Not Millimeters

Stripe programs are written in courses because the same program produces different band heights on different machines: gauge, take-down tension, relaxation and finishing all change the millimeter result. A specification written as a 20 mm stripe is therefore not executable until it becomes a course count on a named build.

Feed count adds a second constraint. On a machine with F feeds, every revolution lays F courses, and because all heads switch in the same revolution, the shortest clean band equals one full revolution, that is F courses. On a 90-feed machine that is roughly 5 cm at 28 gauge, which is why thin stripes belong to feeder striping instead.

Where Does It Fit Among Circular Knitting Machine Types?

It sits inside the single jersey and double jersey families rather than beside them, because a striper is a configuration defined by the yarn-selection hardware at each feed, and the same chassis can be ordered with or without it.

Single Jersey and Double Jersey Stripers

Single jersey machines run about three feeds per inch of diameter and knit a light, one-faced fabric at high speed, which suits striped T-shirts and polo bodies. Double jersey machines run roughly 1.6 to 2 feeds per inch, knit two-faced or rib structures, and are slower but more stable, which suits striped cuffs, collars, underwear and heavier sportswear. On a double jersey build the striper works cylinder positions while the dial yarn, often elastane or ground, continues unchanged beneath the band.

Mechanical Versus Computerized Striping

Mechanical stripers use chains, discs or drums to fix a repeating sequence: robust and inexpensive, but the repeat is short and changing it means changing hardware. Computerized stripers store the sequence in memory, allow repeats of thousands of courses, support engineered placement and reload from a file in minutes. On new builds, automatic almost always means electronic selection.

What Automatic Really Means

Automatic knitting machines exist in every format, and the word describes a continuum rather than a switch: what changes between them is how much yarn handling, needle selection and machine monitoring is mechanized. Automatic does not mean unattended, because package changes, patrol inspection and boundary checks still need an operator.

What Fabrics and Products Come Off an Auto Striper?

Any structure the base machine can knit, plus horizontal color bands: single jersey, pique, lacoste, interlock, rib and terry, with elastane added where recovery is required.

From Polo Shirts to Socks: Typical End Products

The commercial heart of the machine is casualwear: polo shirts, T-shirts, rugby shirts, team uniforms, kids' sets, underwear, loungewear and light sportswear. Rib stripers supply cuffs, collars and waistbands, where a narrow repeating band defines the trim, and small-diameter versions serve hosiery and sock uppers. A horizontal band needs no extra pass through the machine, which is why stripes read as added value at almost no cost in machine time.

The constraint sits downstream. A tall repeat must be matched at the cutting table, and every extra centimeter reduces marker efficiency, so stripe height is a cost decision as much as a design one.

Which Specifications Decide Whether a Machine Fits Your Fabric?

Diameter, gauge, feed count, finger count and speed decide the match, in that order, because they set tube width, yarn count, output and the number of colors available in one repeat.

Diameter and Gauge

Gauge is the number of needles per inch of circumference, and it fixes the yarn count the machine can knit without dropping stitches or producing a stiff fabric. A 24 gauge head runs Ne 26 to 30 cotton, a 28 gauge runs Ne 30 to 34, and a 32 gauge runs Ne 36 to 40 for light, smooth jersey. Choosing the wrong circular knitting machine gauge cannot be corrected later with a different yarn, because needle spacing is machined into the cylinder.

Feeds, Fingers, and Color Capacity

Feed count drives output almost linearly and also sets the floor on band height, so a high-feed machine is the wrong choice for a design built on narrow bands. Finger count works differently: four or six fingers per feed means four or six colors can be presented at every feed in the same revolution, which is the real limit for a band that runs unbroken around the tube. A seventh color needs a different feed arrangement, which produces vertical rather than horizontal striping, or a jacquard head.

Speed and Realistic Daily Output

A 30 inch, 28 gauge machine with 90 feeds at 24 rpm, knitting 160 g/m2 jersey, typically lands between 40 and 50 kg per hour, or roughly 900 to 1,100 kg across a 22 hour day before downtime and quality holds. Quoted output should always be tied to a named fabric, weight and gauge, because heavier structures and lower speeds pull that figure down quickly.

The gap with hand knitting is not a matter of degree. A hand knitter works at roughly a thousand stitches an hour, while a 30 inch machine lays several million a minute, which is why hand knitting survives as craft and sampling rather than as production.

How Do You Judge Stripe Quality Before You Sign?

Run four boundary tests on your own yarn, inspect both faces of a full repeat, and re-check the same fabric after finishing, because a short clean swatch proves nothing about a striper.

The Four Boundary Tests

1. Shortest commercial band. Knit the narrowest band you sell, which exposes the actuator's real recovery time.

2. Two changes close together. Program two changes a few courses apart, where late selection and trapped tails appear first.

3. Dark to light. Pale yarn after a dark band reveals fiber contamination and incomplete cutting.

4. A color parked for a long interval. Keep one color idle for a thousand courses, then recall it; a weak clamp or dry finger fails on re-entry.

Mark every stop and restart directly on the roll, and keep the rejected boundary beside the accepted one, because a trial where program, yarn and tension all changed at once proves nothing.

Face and Reverse: Two Different Inspections

On the face, check band position, level registration where the tube is flattened, shade consistency inside each band and local density at the boundary. On the reverse, check tail length, floats, trapped yarn and contamination from the previous color. Then send the same sample through the real finishing route, because relaxation shifts band width and can expose grin-through invisible in greige.

What Should You Ask Before Ordering?

Ask for the exact build, the striper arrangement, the controller model and a marked sample on your own yarn, because color count, band range and repeat length belong to the build, not to a model name.

1. Model, build revision and striper type, mechanical or electronic.

2. Fingers per feed, and whether a six-finger head fits the same platform.

3. Diameter, gauge and feed count, stated with the yarn count range.

4. Shortest and longest band in courses, demonstrated rather than quoted.

5. Controller memory, file transfer and whether programs can be backed up.

6. Spare finger assemblies, cutter blades and actuators in the first order.

7. Acceptance protocol covering the boundary tests and a second-shift repeat.

Striper-Specific Maintenance

The knitting head follows normal practice: needle and sinker inspection, cylinder lubrication, belt tension, take-down rollers. The striper adds a wear list often neglected because it sits out of sight behind the finger box. Cutter blades dull, finger springs soften, actuator timing drifts and yarn dust packs the selector area. A weekly clean, a blade check against a cut sample and a stock of complete finger assemblies prevent most boundary defects.

When a Jacquard Machine Is the Better Buy

If the design includes logos, large motifs, meshes, or bands that run vertically as well as horizontally, a jacquard knitting machine is the correct tool, because it selects needles individually rather than choosing a yarn. Many modern builds combine both: a striper head for horizontal bands plus three-way needle selection for structure and small motifs.

FAQ

Can an Auto Striper Knit Elastane Inside a Stripe?

Rarely through the striper finger. Elastane normally runs as a separate plating or ground yarn on its own path, holding constant tension while the visible face yarn changes. Some builds allow a dedicated elastane finger, but the tension requirement differs from a spun yarn and the path is usually kept independent. Ask whether the elastane path is separate, because a shared path limits both recovery and color flexibility.

What Is the Shortest Stripe an Auto Striper Can Hold?

The theoretical floor is one revolution, which equals the feed count in courses. In practice two to four revolutions give a stable edge with clean registration, and anything shorter belongs to feeder striping or a jacquard head. Because the millimeter equivalent depends on gauge and stitch length, the shortest band should be specified in courses for a named build.

Why Do Stripe Edges Shift After Washing?

Because the program controls courses, not millimeters. Relaxation, shrinkage and compaction change course density, and colors can behave differently when yarns differ in count, twist or fiber. The fix is commercial rather than mechanical: approve band width on finished fabric after an agreed wash test, then convert that figure back into a course count for the machine file.
