What Is Gauge in A Knitting Machine?

The gauge of a knitting machine is the number of needles arranged within one inch of the needle bed. A 5 gauge machine has 5 needles per inch, a 7 gauge machine has 7 needles per inch, and a 12 gauge machine has 12 needles per inch. The higher the gauge number, the finer and more closely packed the needles, and the finer, lighter, and smoother the resulting fabric.

The sections below explain how gauge is defined and measured, how it shapes the knitted fabric, the common gauge categories for industrial and home machines, and how to select the right gauge for a specific product.

What Does Gauge Mean on a Knitting Machine?

Gauge, abbreviated as gg and sometimes written as G or E in European machine specifications, is the number of needles present in one inch of the needle bed. In the United States the same figure is called the "cut", short for "tricks cut per inch", but the meaning is identical.

The definition comes from knitting engineering rather than casual usage. As documented in knitting technology references, gauge is measured on a single needle bed, so a V-bed flat machine with two opposed beds carries twice the total number of needles, yet its gauge figure still counts one bed only. All primary knitting elements on the same machine are set to the same gauge.

Gauge notation varies by machine class: weft-knitting machines use gg or E, warp-knitting machines use E, and historic systems counted needles per 1.5 or 2 inches. Always confirm which system a specification uses.

Gauge vs. Needle Pitch

Needle pitch is the distance between the centers of two adjacent needles, and it is the inverse of gauge:

Pitch (mm) = 25.4 ÷ gauge

At 7gg the pitch is 25.4 ÷ 7 = 3.63 mm, at 12gg it is 25.4 ÷ 12 = 2.12 mm, and at 3gg it is 25.4 ÷ 3 = 8.47 mm. This geometric constraint is what physically links gauge to yarn thickness: the pitch determines the gap between the side of the needle and the trick wall, which is the maximum space available for the yarn to pass through as the needle draws a new loop. That is why every gauge has a workable window of yarn counts.

A Fixed Property of the Machine

Gauge is built into the machine. It is determined by the needle bed of a flat machine or the cylinder and dial of a circular machine, together with the cam system, and it cannot be changed through settings or programming. Some machine platforms allow a needle bed swap to convert to a different gauge, but the spare parts involved can cost roughly one third of the price of a new machine.

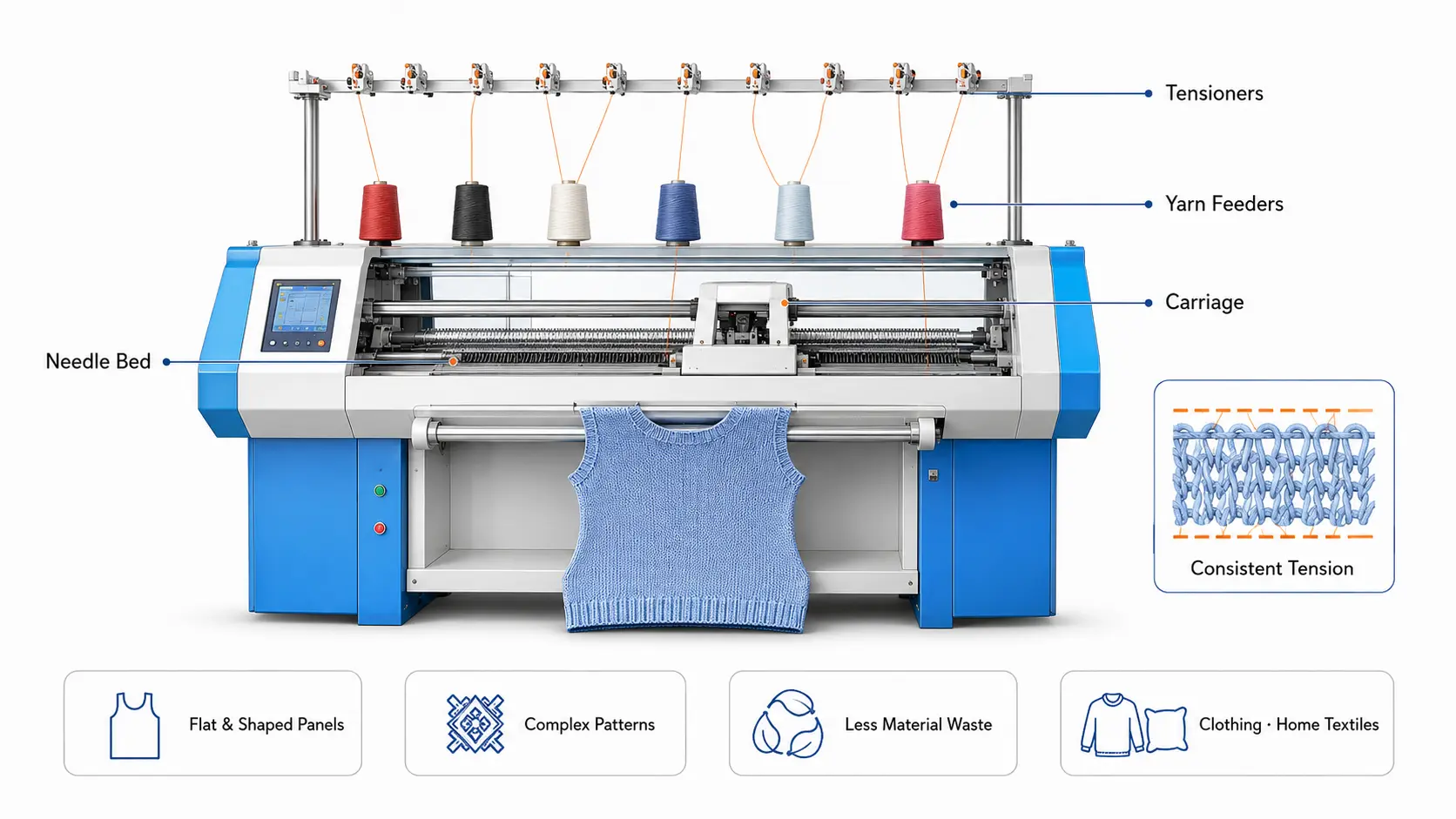

Machine type also sets the practical gauge range. Flat-bed machines, which knit shaped panels for sweaters and accessories, commonly run from 3gg to 18gg, while circular knitting machine, which knit continuous tubular fabric for jersey and underwear, typically run from E5 to E40.

How Gauge Affects the Knitted Fabric

Higher gauge machines produce finer, lighter, denser fabric with small stitches, while lower gauge machines produce thicker, loftier fabric with large, visible stitches. Gauge therefore decides fabric weight, drape, texture, and even how detailed a pattern can be.

The mechanics are straightforward. More needles per inch means more wales (vertical columns of loops), smaller loops, and more courses per centimeter, producing a compact, smooth surface that drapes cleanly and supports fine detail. Fewer needles means fewer, larger loops, producing an open, lofty fabric where the stitch structure itself is a design feature.

Gauge also has production consequences: for a given machine width or diameter, a finer gauge knits a wider but slower fabric, and its finer needles are more delicate and costly to maintain.

Common Knitting Machine Gauge Categories

Industrial flat-bed machines are classified by needles per inch (3gg to 18gg), while home knitting machines are classified by needle spacing in millimetres, giving four families: fine, standard, mid, and bulky. Both systems describe the same physical property.

Industrial Flat-Bed Gauges (3gg to 18gg)

Sweater and knitwear production is organized around the following workhorse gauges:

The trade uses two umbrella terms for these ranges: heavy gauge for roughly 0.5gg to 7gg and light gauge for roughly 9gg to 18gg. Continuous jersey fabric sits higher still, on circular machines from E18 to E32.

Home Knitting Machine Categories (Fine, Standard, Mid, and Bulky)

Domestic machines follow the same principle but are labeled by needle spacing:

A standard gauge home machine typically carries around 200 needles, a fine machine around 250, and mid or bulky machines between 100 and 200. Many mid and bulky machines can extend their yarn range by working on every other needle.

What Is the Difference Between a 5 Gauge and a 7 Gauge Knit?

A 5 gauge knit is chunky, heavy, and highly textured, while a 7 gauge knit is medium-weight with a balance of texture and refinement, making 7gg the most versatile and widely used gauge for classic knitwear.

These two gauges are the most commonly quoted specifications in knitwear sourcing.

In practical terms, a 5 gauge garment is built for cold-weather impact: the large loops trap air, the fabric has visible structure, and intricate multicolor patterns are difficult at this scale. A 7 gauge garment is the commercial workhorse: warm enough for winter, light enough for three-season wear, and forgiving in production. Most brands launching a core knitwear collection start at 7gg for exactly these reasons.

How to Determine the Gauge of Your Knitting

To determine a machine's gauge, check the machine's specification plate or manual, or count the needles within one inch of the needle bed; to determine the gauge of knitted fabric, knit a swatch and count the stitches across four inches.

The word gauge refers to two related but different things: a property of the machine and a property of the fabric.

Identifying the Gauge of a Knitting Machine

Use the following approaches, in order of reliability:

1. Check the specification plate or model name. Industrial machines state the gauge explicitly, often in the model designation itself, such as an E figure or a gg number.

1. Count needles across one inch. Lay a ruler along the needle bed and count the needles in one linear inch. Home machines are usually labeled by millimetre spacing instead.

1. Calculate from total needles. On a circular machine, divide the total number of needles by the circumference in inches. A sock machine with 168 needles on a 4-inch cylinder has a circumference of 4 × 3.14 = 12.57 inches, so the gauge is 168 ÷ 12.57, or approximately E14.

Measuring the Gauge of a Knitted Fabric

Fabric gauge, also called tension, describes the density of the fabric rather than the machine. The standard method is:

1. Knit a swatch larger than the area to be measured, typically at least 6 by 6 inches, in the stitch pattern used for the project, or stockinette if none is specified.

1. Block or wash the swatch and let it dry, because natural fibers relax and shift after washing.

1. Lay the swatch flat, place a ruler horizontally across the center, and count the stitches within 4 inches.

1. Rotate the ruler vertically and count the rows within 4 inches.

1. Compare the stitch and row counts against the pattern or specification target.

Measure in the center of the swatch, never at the edges, because edge stitches and tension changes distort the count. A swatch that is half a stitch per inch off can translate to several inches of difference across a full garment.

Is a Knitting Gauge the Same as a Crochet Gauge?

No. A knitting machine gauge is a fixed machine specification (needles per inch), while hand-knitting gauge and crochet gauge describe the density of the fabric a person produces (stitches per 4 inches), and knit and crochet gauges are not interchangeable with each other.

Although the three terms share one word, they measure different things:

Crochet gauge differs from knit gauge structurally, not just numerically. Crochet stitches are built one at a time on a single hook and are taller and denser than knitted loops, so the same yarn worked on the same mm-sized tool produces a different fabric count in each craft. A pattern written to a knit gauge therefore cannot be followed to a crochet gauge; converting between the two requires recalculating from measurements.

How to Choose the Right Knitting Machine Gauge

Choose the gauge by matching three variables: the end product, the yarn count, and the level of design detail, because gauge fixes the fabric weight, the yarn window, and the pattern resolution before knitting begins.

Yarn count is the critical constraint. As a rule of thumb used in production planning, the optimum cotton count for a single jersey machine follows Ne = gauge squared divided by 18 to 20, and the relationship between machine gauge and yarn count follows an inverse pattern: higher gg requires finer indirect counts such as Ne or Nm. Pushing outside the window has mechanical consequences, not just aesthetic ones.

The mismatch scenarios are well documented:

• Yarn too thick for the gauge: the needle hook cannot clear the yarn during knock-over, causing extreme tension, fabric holes, jamming, bent needles, and broken sinkers.

• Yarn too thin for the gauge: the needles cannot control the loops uniformly, producing unstable, transparent fabric with irregular spirality.

A simplified selection guide for common products:

Beyond the numbers, treat gauge as a product decision. A chunky gauge sells texture and warmth but limits pattern detail, while a fine gauge sells refinement and year-round wear but is more sensitive to yarn quality and finishing.

FAQ

Does a higher knitting machine gauge always mean better quality?

No. Gauge indicates fineness, not quality. A 3gg fisherman sweater and a 14gg summer merino layer are simply different products with different purposes. Quality in knitwear comes from yarn grade, stitch consistency, construction, and finishing, all of which can be excellent or poor at any gauge.

Can one knitting machine produce different gauges?

A standard machine is fixed to one gauge, but multi-gauge machines can knit different gauge effects within the same fabric panel through needle selection and stitch transfer, and convertible machines can be reconfigured to run a different gauge one setup at a time. For most production planning, however, a fixed-gauge machine remains the norm, so factories choose their gauge range when investing in equipment.

Which gauge is used for T-shirt fabric?

T-shirt jersey is knitted on fine gauge circular machines, typically E18 to E28, using fine cotton yarn counts. This range produces the smooth, lightweight 120 to 180 gsm fabric used for standard T-shirts, polos, and sportswear, which is a different machine class from the flat-bed gauges used for sweaters.
