A fine gauge circular knitting machine is a circular weft knitting machine whose needle cylinder carries a high density of needles, typically 28 to 44 needles per inch (E28 to E44). Because the needles sit extremely close together, the machine forms small, tightly packed loops, allowing it to knit lightweight, smooth, high-density fabrics in the roughly 50 to 150 gsm range from fine yarns such as Ne 30 to Ne 60 and finer. It is the standard equipment for underwear, seamless garments, high-quality lightweight jersey, hosiery, and technical and medical textiles.
The sections below explain what gauge means, how fine gauge machines differ from standard gauge models, how the knitting process works, what fabrics and products they produce, their advantages and limitations, and how to select the right machine for a production line.

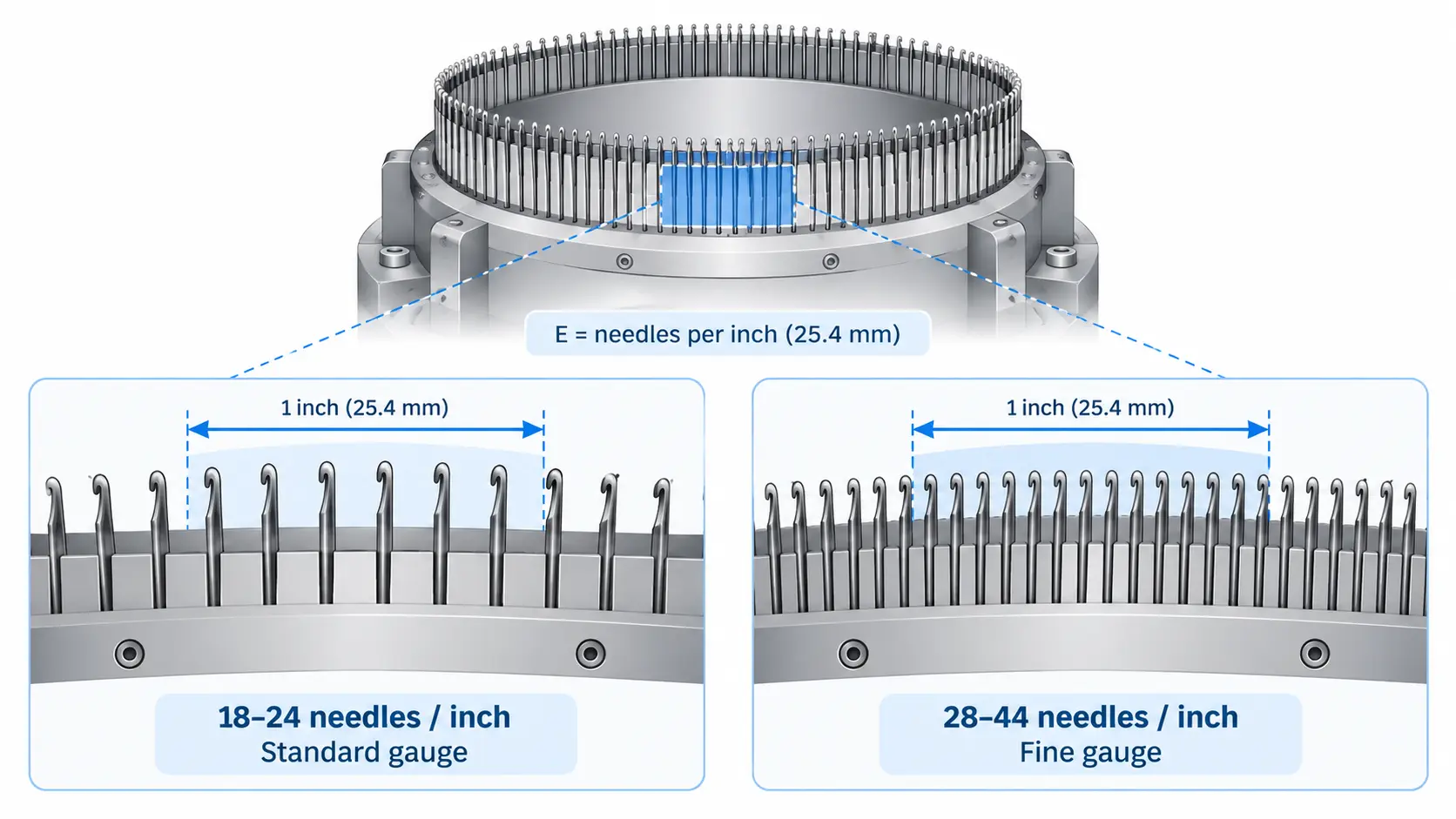

Gauge, denoted by the letter E, is the number of knitting needles arranged per inch (25.4 mm) of the needle cylinder circumference. A fine gauge circular knitting machine therefore carries 28 to 44 needles in every inch of the cylinder, compared with roughly 18 to 24 needles on a standard gauge machine.
A circular knitting machine forms fabric by mounting needles vertically around a rotating cylinder. As the cylinder turns, yarn guides feed yarn into the needle hooks, and each needle draws a new loop through the previous one. Stitch by stitch, the machine produces a continuous tube of knitted fabric with no side seams. Gauge is the single most important specification on such a machine because it determines loop size, stitch density, fabric weight, and which yarn counts the machine can handle.
A 30-inch machine at E24 carries about 2,260 needles around its cylinder. The same machine at E40 carries more than 3,700 needles, each fitted into a groove barely half a millimeter wide. This is why gauge classifications matter:
Classification | Gauge Range | Approx. Needle Spacing | General Character |
Coarse | E5 to E12 | 5.08 to 2.12 mm | Heavy fabrics, fleece, technical textiles |
Standard | E13 to E24 | 1.95 to 1.06 mm | T-shirts, polo shirts, casualwear |
Fine | E28 to E32 | 0.91 to 0.79 mm | Lightweight jersey, innerwear, fashion knits |
Ultra-fine | E34 to E44 and above | 0.75 to 0.58 mm | Second-skin fabrics, hosiery, medical textiles |
Exact boundaries vary slightly between manufacturers, but in common trade usage, fine gauge circular knitting machines begin at E28. Anything from E34 upward is usually described as ultra-fine, and specialized machines now reach E60 and beyond for extremely delicate, woven-like fabrics.
The fundamental difference is needle density: fine gauge machines knit smaller loops from finer yarns to produce lighter, smoother, denser fabrics, while standard gauge machines run faster with coarser yarns and heavier fabrics. Everything else, from speed and cost to maintenance demands, follows from that single difference.
The practical comparison looks like this:
Feature | Standard Gauge (E18 to E24) | Fine Gauge (E28 to E44) |
Needles per inch | 18 to 24 | 28 to 44 |
Needle spacing | 1.41 to 1.06 mm | 0.91 to 0.58 mm |
Typical yarn count | Ne 12 to Ne 30 | Ne 30 to Ne 60 and finer |
Fabric weight | 120 to 220 gsm | 50 to 150 gsm |
Typical machine speed | 22 to 35 rpm | 14 to 25 rpm |
Typical products | T-shirts, polo shirts, sportswear | Underwear, seamless garments, base layers, hosiery, medical textiles |
Relative machine cost | Baseline | Roughly 40 to 60 percent higher |
Relative fabric value | Baseline | Significant price premium in apparel markets |
Two points in this comparison deserve emphasis. First, gauge is fixed at the time of purchase. A machine cannot be converted to a different gauge without replacing the cylinder, dial, and cam system, which is effectively equivalent to buying a new machine. Second, the relationship between gauge and speed is inverse. Finer needles must complete their movement in tighter spaces with less clearance, so the cylinder must rotate more slowly to avoid needle damage and fabric defects. A fine gauge machine therefore produces fewer kilograms of fabric per hour than a standard gauge machine of the same diameter, and its economics depend on the higher value of the fabrics it produces.
A fine gauge circular knitting machine works on the same weft knitting principle as any circular machine, but every component must operate at much tighter tolerances because the needles, tricks, and cam tracks are miniaturized.

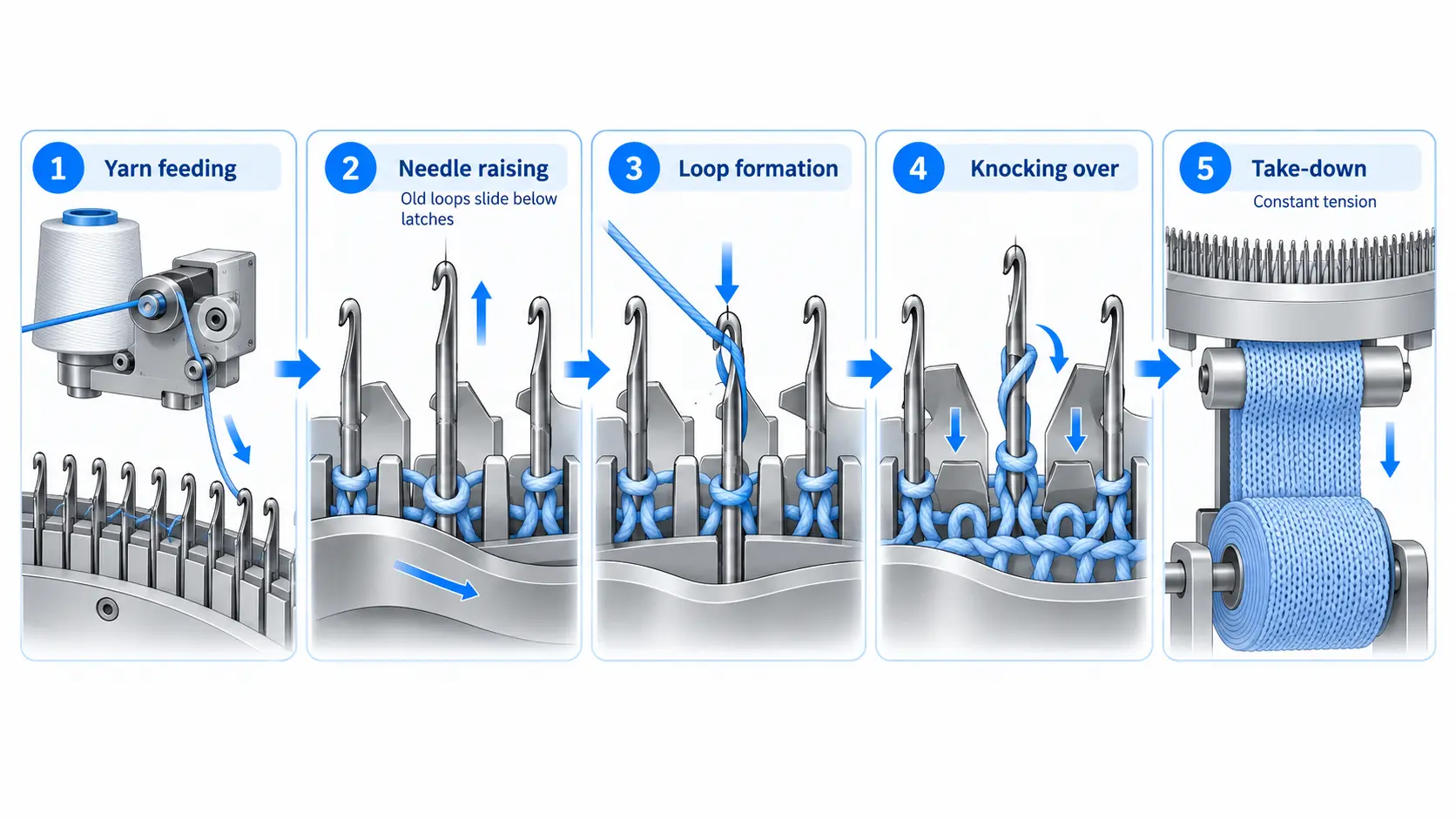

The knitting cycle at each feed position follows the same sequence found on all circular weft knitting machines:
Yarn feeding: positive feeders deliver yarn at a controlled rate to keep stitch length uniform.
Needle raising: cam tracks lift the needles so the old loops slide below the needle latches.
Loop formation: each descending needle catches the new yarn in its hook and pulls it through the old loop.
Knocking over: the old loop is cast off, while sinkers on single jersey machines hold the fabric down under controlled tension.
Take-down: rollers draw the finished tube downward at constant tension and wind it into a roll.
On fine gauge machines, this cycle must repeat flawlessly thousands of times per revolution with hooks a fraction of a millimeter in size. That demands precision-ground cylinders with roundness and flatness errors held to a few hundredths of a millimeter, hardened needles with optimized hook geometry, centralized stitch adjustment, and automatic lubrication. Even small deviations translate directly into visible defects such as vertical faults, broken loops, or uneven courses.
Single jersey fine gauge machines use one needle bed, the cylinder, together with sinkers. They produce plain, single-layer fabrics with a smooth face and a textured back. This is the most common configuration for lightweight jersey in the 80 to 150 gsm range, and it offers the highest feeder counts and productivity among fine gauge machines. The trade-off is familiar to every knitter: single jersey curls at cut edges and has more limited dimensional stability.
Double jersey knitting machines add a second needle bed in the dial, positioned at right angles to the cylinder. The two needle sets form interlocking loops that create rib, interlock, and double-face structures. These fabrics are more stable, lie flat, and look similar on both sides, which suits premium underwear, shaping garments, and fine rib trims. The mechanics are more complex, cylinder and dial must be synchronized exactly, and speeds are somewhat lower.
Fine gauge circular knitting machines produce lightweight, dense, and exceptionally smooth fabrics with a silky hand feel, and they dominate production of next-to-skin garments where comfort and surface quality are the primary requirements.
The fabric characteristics that define fine gauge knitting include:
High loop density, which creates a smooth, homogeneous surface where individual loops are difficult to distinguish
Opacity at low weight, so fabrics can be light without being transparent
Excellent elasticity and body-hugging fit, especially when knitted with elastane
A soft, skin-friendly handle suitable for prolonged direct contact with skin
Fine, clean surfaces that take dyeing and printing well
According to knitting systems suppliers, ultra-fine constructions can exceed 2,600 loops per square centimeter at gauges of E66, giving knitted fabrics a woven-like appearance and opening markets that historically belonged to woven and warp-knitted goods.
Fine gauge circular knitting machines serve a wide but clearly defined set of end uses:
Underwear and lingerie, where light weight, softness, and opacity are essential
Seamless garments and bodywear produced on small-diameter fine gauge machines
Premium lightweight T-shirts and fine-gauge jersey for fashion basics
Activewear, base layers, and performance wear knitted with polyester, nylon, and elastane blends
Hosiery and sock fabrics requiring fine, elastic, high-density structures
Medical textiles, including compression bandages, surgical gloves, and support garments
Technical applications such as industrial filters and automotive fabrics with woven-like surfaces
Fine gauge knitting offers premium fabric quality and access to high-value markets, but it demands higher investment, slower production speeds, and stricter yarn and maintenance discipline than standard gauge knitting.
The main advantages are:
Access to premium fabric segments where fine, light knits command markedly higher prices per kilogram
Superior wearer comfort and hand feel for next-to-skin products
High stitch density, uniform surface quality, and excellent dyeing and printing results
The ability to replace certain woven fabrics with more comfortable knitted alternatives
Lower fabric weight, which reduces raw material consumption per garment
The limitations are equally real:
Lower cylinder speeds mean lower hourly output in kilograms than standard gauge machines
Fine yarn counts (Ne 30 and above) cost more per kilogram and require cleaner, more even spinning
Needle and sinker wear is less forgiving, and defective yarn causes faults more readily
Maintenance schedules for lubrication, cam condition, and needle replacement must be strictly observed
Machine purchase prices run substantially above standard gauge equivalents, and the usable yarn range is narrower
For a mill, the decision is fundamentally economic: fine gauge machines are justified when the target fabrics sell at premiums that more than offset slower output, costlier yarn, and higher machine depreciation.
The correct approach is to start from the target fabric, work backward to the required yarn count, and then match the machine gauge, diameter, and feeder configuration to that fabric.
The industry uses a practical relationship to match yarn count to machine gauge. For cotton single jersey knitting, the optimal English cotton count can be estimated with the empirical formula Ne = E squared divided by a constant K, where K falls between 18 and 20. A fine gauge machine at E28 therefore pairs naturally with yarns around Ne 40, while E32 pairs with yarns around Ne 50. Engineers use this gauge and yarn count relationship as a starting point and adjust for fiber type, twist, and fabric structure.
A quick reference for fine gauge production looks like this:
Target Fabric | Gauge | Typical Yarn (Ne) | Fabric Weight |
Lightweight T-shirts, fine jersey | E28 to E30 | 30 to 40 | 90 to 140 gsm |
Premium underwear, innerwear | E28 to E32 | 40 to 50 | 60 to 100 gsm |
Seamless garments, bodywear | E28 to E34 | 40 to 60 | 50 to 100 gsm |
Hosiery, medical, second-skin fabrics | E34 to E44 | 50 to 70 and finer | 50 to 90 gsm |
Beyond gauge itself, evaluate the following before purchasing:
Machine diameter, which determines the usable fabric width after the tube is slit open
Feeder count, expressed as feeders per inch of diameter, which drives productivity at a given rpm
Yarn supply stability, since fine counts require consistent, high-quality spinning
Frame rigidity and component quality, because precision retention over years of operation depends on the cast frame, cylinder, and cam manufacturing standards
Availability of spare parts, needles, and technical support in your region
Automation features such as electronic stitch adjustment, fabric fault detection, and production monitoring
Choosing well in each of these areas protects both fabric quality and total cost of ownership over the life of the machine.
Can a circular knitting machine be converted to a different gauge?
No. Gauge is built into the cylinder, dial, and cam system, so a machine cannot be changed from, for example, E24 to E32 by adjustment. Conversion would require replacing those core components at a cost comparable to a new machine. Some suppliers offer machines with interchangeable cylinder assemblies, but these carry a price premium and longer changeover times, so most mills simply dedicate each machine to one gauge.
Are fine gauge circular knitting machines slower than standard gauge machines?
Yes, typically by 20 to 40 percent. Fine gauge machines usually run at 14 to 25 rpm, compared with 22 to 35 rpm for standard gauge models, because miniature needles need more time to complete each loop formation cycle safely. Hourly output in kilograms is correspondingly lower, which is why fine gauge production is planned around fabric value rather than volume.
Do fine gauge fabrics require special finishing?
They can. Because fine gauge fabrics are light and densely knitted, dyeing, heat setting, and calendering must be controlled carefully to avoid stretching, marking, or glazing the surface. Elastane-containing fabrics additionally need heat setting to stabilize dimensions. Mills moving from standard gauge to fine gauge production often need to adjust finishing parameters rather than transfer them directly.
