Views: 1 Author: Site Editor Publish Time: 2026-08-06 Origin: Site
For textile manufacturers, few decisions shape production capabilities as fundamentally as choosing between a single jersey knitting machine and a double jersey knitting machine. The choice ripples outward — influencing the fabrics you can produce, the speed at which you can produce them, your capital expenditure, and the long-term maintenance burden your workshop will carry.
At first glance, both machines look similar: rotating cylinders, precision cams, and high-speed yarn feeders. But beneath the surface, the single jersey knitting machine vs double jersey knitting machine comparison reveals two fundamentally different engineering philosophies. One prioritizes speed, simplicity, and lightweight fabrics; the other trades complexity for dimensional stability, versatility, and a premium feel.
This guide breaks down the mechanical, productive, and economic differences between the two, helping fabric producers, garment brands, and factory planners make an informed decision.
What Is a Single Jersey Knitting Machine?

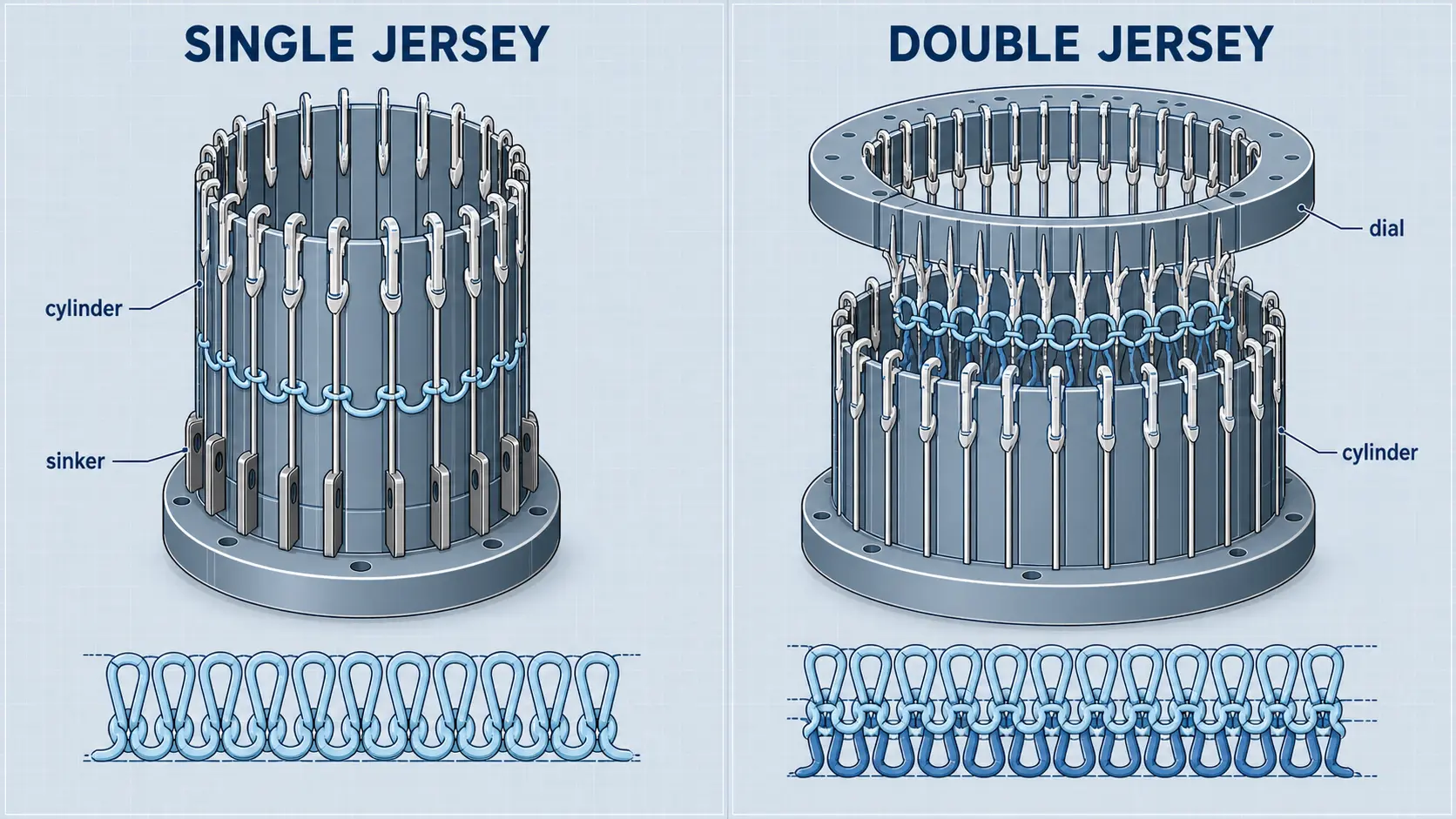

A single jersey circular knitting machine is built around a single needle bed — typically a vertical cylinder equipped with latch needles and a matching set of sinkers. As the cylinder rotates, yarn feeds into the needle hooks, and each needle forms an independent loop. The sinkers hold the fabric down and assist in loop formation. Because knitting occurs in only one direction, the resulting fabric has a distinct technical face (smooth V-shaped loops) and technical back (semi-circular loops).

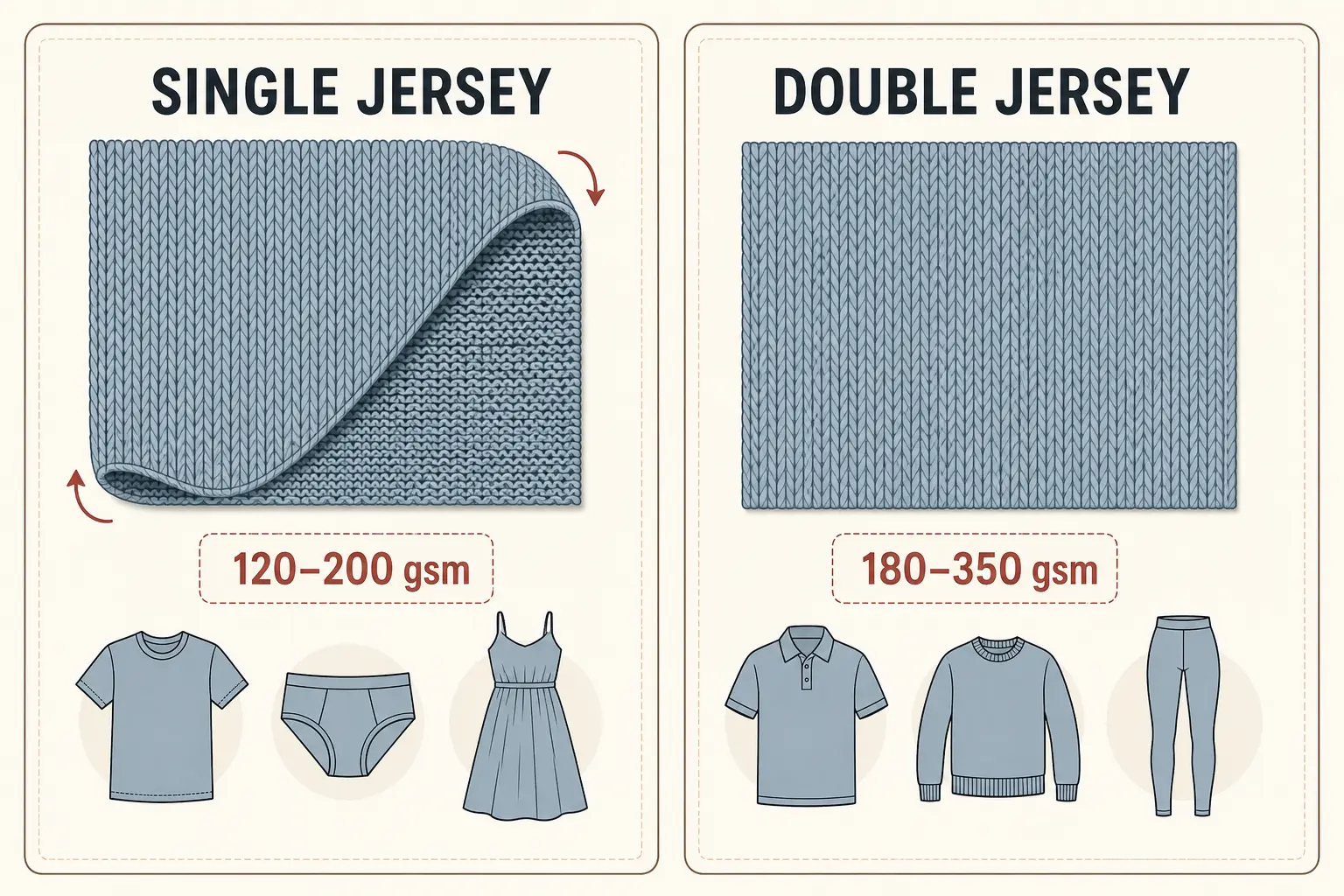

Single jersey fabrics are lightweight, breathable, and naturally stretchy — primarily across the width. They typically weigh between 120 and 200 grams per square meter (gsm), making them ideal for warm-weather and next-to-skin garments. The trade-off is a well-known tendency to curl at cut edges, a direct consequence of the asymmetric single-layer structure. Single jersey also has limited dimensional stability compared to double knits, which can lead to shape distortion over repeated wear and washing.
Single jersey is the backbone of high-volume basics: T-shirts, underwear, lightweight dresses, sleepwear, and summer activewear. Its cost-effectiveness and printability also make it the default choice for graphic tees and fast-fashion items where turnaround time matters.
A double jersey knitting machine uses two sets of needles: one in the vertical cylinder and one in the horizontal dial. These two needle beds are positioned at right angles and synchronized to interlock their loops, producing a double-layer fabric without the use of sinkers. This dual-bed construction is mechanically more complex — the cylinder and dial must move in precise coordination — but it unlocks stitch structures such as rib, interlock, and purl that single jersey machines simply cannot produce.
Double jersey fabrics are thicker, denser, and more dimensionally stable than their single jersey counterparts, typically weighing 180–350 gsm. Both faces look similar, and the fabric lies flat without curling at the edges. The interlocked structure also delivers better shape recovery, making double knits more resistant to sagging and distortion. The downside is reduced breathability and a heavier hand feel, which limits use in hot-weather apparel.
Double jersey shines in structured garments: hoodies, polo shirts, sweaters, leggings, babywear, and performance activewear. It is also favored for technical textiles — medical compression garments, automotive upholstery, and industrial filtration media — where strength and consistency matter more than featherweight feel.
Feature | Single Jersey | Double Jersey |
Needle setup | One set (cylinder + sinkers) | Two sets (cylinder + dial) |
Fabric structure | Single layer, distinct face/back | Double layer, similar both sides |
Edge behavior | Curls naturally | Lies flat |
Stretch | Mostly widthwise | Balanced, both directions |
Fabric weight | 120–200 gsm | 180–350 gsm |
Gauge range | 18G–40G | 12G–28G |
Common products | T-shirts, underwear, dresses | Polo shirts, hoodies, activewear, technical textiles |
The table highlights why the two machines are rarely interchangeable. A factory built around lightweight basics will struggle to justify a double jersey line, while a performance-wear producer cannot meet quality targets with single jersey alone. The structural distinction — single-knit vs interlocked double-knit — cascades into every downstream decision, from cutting and sewing to finishing and labeling.
Simpler mechanics allow single jersey machines to run faster. Standard configurations operate at 32–40 revolutions per minute (RPM), producing roughly 35–50 kg of fabric per hour with a 24G gauge and standard yarn counts. Double jersey machines, constrained by the need to synchronize cylinder and dial, typically run at 20–30 RPM and generate 25–40 kg per hour under equivalent conditions. For high-volume basic apparel, that speed gap translates directly into lower per-unit cost.
Cost Factor | Single Jersey | Double Jersey |
Initial investment | 15,000–35,000 | 25,000–55,000 |
Energy consumption | 2.5–3.5 kW/h | 3.5–5.0 kW/h |
Maximum RPM | 32–40 | 20–30 |
Output (kg/h) | 35–50 | 25–40 |
Annual maintenance | 2,500–4,000 | 4,000–6,500 |
Double jersey machines carry a 60–70% premium on purchase price and 50–60% higher annual maintenance costs, driven by additional needle sets, dial components, and more complex cam systems. They also consume roughly 30–40% more energy per hour. For budget-conscious operations, these numbers are a decisive factor — though they must be weighed against the higher price point that double jersey fabrics command in technical and premium applications. According to industry trade data, double jersey fabrics can carry a 15–25% price premium in technical textile markets.
Single jersey machines offer the widest gauge range — from 18G for coarser industrial fabrics up to 40G for fine-gauge luxury underwear. The 24G–28G range dominates apparel production. Double jersey machines typically operate between 12G and 28G, with 18G–22G being the commercial sweet spot for structured garments. This means the finest, most delicate jersey fabrics remain the domain of single jersey machines, while double jersey excels in heavier, more stable constructions.
Yarn compatibility also differs. Single jersey handles standard cotton, polyester, and viscose efficiently. Double jersey, thanks to its synchronized needle beds, copes better with elastic yarns, technical filaments, and variable-thickness recycled fibers.
There is no universal winner in the single jersey knitting machine vs double jersey knitting machine comparison — only the right fit for a specific product strategy. Consider the following decision factors:
Target fabric weight: Lower GSM favors single jersey; higher GSM and structured fabrics favor double jersey.
Edge stability requirement: If flat, non-curling edges are critical for cutting and sewing, double jersey is the better choice.
Production speed priority: For fast-fashion basics and high-volume tees, single jersey's higher RPM wins.
Budget constraint: Limited capital and simpler maintenance point toward single jersey.
Product positioning: Premium athleisure, performance wear, and technical textiles lean double jersey.
Future flexibility: Modern computerized double jersey machines can produce single jersey fabrics by deactivating one needle set, offering broader versatility at a higher entry cost.
The line between single and double jersey machines is blurring. Manufacturers now offer hybrid models that switch between the two modes, computerized pattern controls that enable complex jacquard on basic machines, and IoT-connected systems that provide real-time production analytics. Energy-efficient motors and self-lubricating systems are reducing operating costs on both sides.
Sustainability is also reshaping the landscape. According to Textile Exchange, recycled polyester and organic cotton are increasingly standard inputs, and both machine types can process them — though double jersey's stable structure often handles variable-thickness recycled yarns more smoothly. The result is a market where the choice between single and double jersey is no longer purely mechanical, but also a question of how adaptable your equipment is to evolving fiber inputs and digital workflows.
The single jersey knitting machine vs double jersey knitting machine comparison ultimately comes down to matching machinery to product strategy. Single jersey machines deliver speed, lower cost, and lightweight breathability — the foundation of mass-market basics. Double jersey machines deliver stability, versatility, and premium fabric characteristics, justifying their higher investment in performance, technical, and structured apparel applications.
Neither is universally superior. The right decision depends on the fabrics you intend to produce, the markets you serve, and the capital you can commit. By understanding the mechanical, productive, and economic trade-offs outlined above, textile manufacturers can build a knitting line that aligns with both current demand and future growth.
Yes, in many cases. Modern computerized double jersey machines can deactivate one needle bed — usually the dial — and produce single jersey fabric. This adds versatility, though output speed and efficiency rarely match a dedicated single jersey machine. For manufacturers handling diverse product lines, this flexibility can justify the higher upfront investment.
Single jersey machines are generally the safer starting point. They require lower capital investment, are simpler to operate and maintain, and serve the largest segment of the apparel market — T-shirts, undergarments, and lightweight basics. Many successful brands launch with a single jersey line and expand into double jersey as their product range and budget grow.
Both machine types can process recycled polyester, organic cotton, and other sustainable fibers, but they behave differently. Single jersey machines may struggle slightly with the inconsistent thickness of some recycled yarns, requiring careful tension adjustment. Double jersey machines, with their synchronized dual-needle-bed structure, often handle variable-thickness sustainable yarns more smoothly, producing more consistent fabric. For brands prioritizing recycled-content collections, double jersey can offer a stability advantage.
