Computerized knitting machines sit at the center of modern knitwear production, turning a digital design file into shaped panels, jacquard patterns, and whole garments at speeds no hand-driven machine can approach. A single unit can cost from a few thousand to well over a hundred thousand dollars, and it locks a plant into one gauge, working width, and software ecosystem for years. Buyers who decide on price alone often discover too late that the machine cannot knit the yarn they stock, cannot reach the output they promised, or cannot be repaired when a needle bed wears out.
Choosing a computerized knitting machine means matching six variables to a real production plan rather than to a brochure: machine architecture, gauge and yarn compatibility, the number of knitting systems and the working width, the knitting capabilities you genuinely need, the control system and design software, and the supplier support that keeps the machine running. The right machine aligns with the yarns, products, order volumes, and operator skills you have today, while leaving headroom for what you intend to make next.
This guide works through those variables in the order a buying team should consider them, from the basic anatomy of the machine to the checklist that belongs on the table during the final negotiation.
A computerized knitting machine is a knitting machine whose needle selection, carriage movement, stitch structure, yarn feeding, and fabric take-down are directed by a stored digital program instead of by punched cards, fixed cams, or an operator's hand. The control system reads a design file, decides which needles knit at every course, and repeats that decision with a consistency that mechanical and manual machines cannot match.
The distinction lies in control, not in the loop itself. Every knitting machine forms fabric by pulling a new loop through a previously formed one, a principle unchanged since 1589. What changed is who decides which needle participates. A manual machine depends on the operator; a mechanical machine follows a chain or card; a computerized machine holds the entire design, adjusts shaping course by course, and recalls thousands of stored patterns in seconds. Understanding the general principles of how a knitting machine forms loops makes the rest of the selection process easier to follow.
The carriage travels across the needle bed, and cams push selected needles forward so they catch the incoming yarn, then retract them so the old loop is cast off. Plain jersey selects every needle on every course, a jacquard selects different needles to place different colors, and shaping selects a narrowing or widening band of edge needles so a panel becomes a sleeve or a neckline. Whole-garment knitting works two beds against each other to build a nearly seam-free piece. Because the processor issues these decisions needle by needle and course by course, one physical machine covers an enormous range of structures without a mechanical changeover.
Each component below shapes what the machine can knit and how often it needs attention.
Component | Function and Selection Note |
Needle bed | Holds needles in straight slots; single-bed machines knit flat fabric, while double-bed V-shaped machines add ribs, pockets, and tubular structures |
Needles and latches | Form each loop; finer gauges use thinner needles that are more sensitive to yarn quality and tension |
Carriage and cams | Drive the needles through the knit cycle; worn cams cause uneven density and dropped stitches |
Yarn feeders | Deliver yarn to the needles under controlled tension; more active feeders generally mean higher output per pass |
Control system | Stores patterns, calculates shaping, and issues needle-selection commands from a design file |
Design software | Where patterns and production parameters are created, previewed, and transferred to the machine |
Take-down system | Pulls fabric downward at constant tension, governing finished width, stitch density, and weight stability |
The four families differ mainly in how much of the knitting decision is automated.
Machine Family | Control Method and Best Use |
Computerized | Full digital patterning and shaping through design software; suited to complex jacquards, fully fashioned panels, whole garments, and high-volume programs |
Electronic | Electronic pattern memory and repeatable designs with simpler controls; a workable middle ground for consistent mid-volume runs without advanced shaping |
Mechanical | Punched cards, chains, or cams set the pattern without electricity; reliable and inexpensive but limited to simple repeats and wider tolerances |
Manual | The operator controls nearly every step by hand; lowest cost, useful for sampling and craft work, but far slower and dependent on operator skill |
Architecture determines the shape of the fabric the machine can make, so it should be settled before any specification is compared. Flat bed machines knit a flat panel that is later seamed into a garment, while circular machines knit a continuous tube that suits hats, socks, sleeves, and seam-free body panels. A factory that needs shaped sweater panels and one that needs tubular activewear are looking at two different machines.
This is the most consequential choice in the process, and it is decided by the product list rather than the price list. Many established operations eventually run both types, because the two architectures cover complementary product ranges rather than competing directly.
A flat bed machine arranges needles in a straight line on one or two beds and passes a carriage back and forth across them. The V-shaped double bed is the workhorse of garment production, because it transfers stitches between beds to form ribs, cables, pockets, and panels knitted to their final outline, up to whole-garment construction. The mechanics of flat knitting explain why stitch transfer is the capability that separates a basic panel machine from a fully fashioned one.

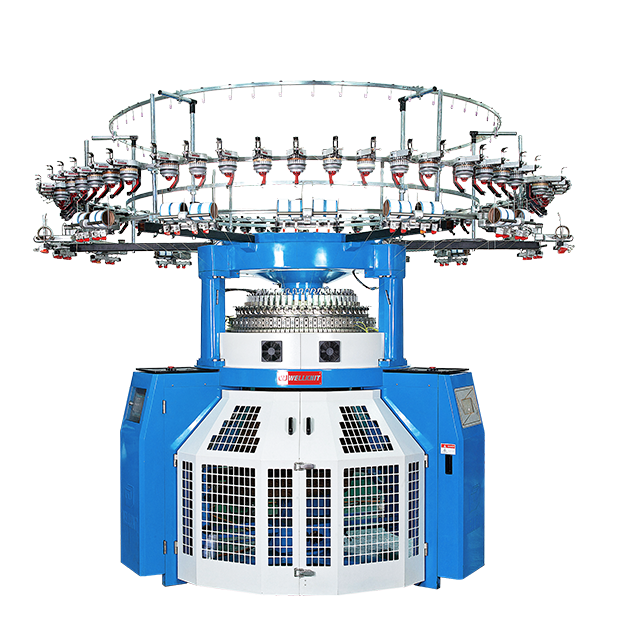

A circular machine arranges needles around a rotating cylinder and knits a continuous tube, eliminating side seams by construction. It is exceptionally productive for tubular products, and electronic versions can vary stitch structure across the tube to add shaping or comfort zones. Its limitation is directional: it builds tubes, not shaped pieces with armholes and necklines.
Comparison Point | Flat Bed | Circular |
Fabric form | Flat panel, seamed into a garment | Continuous tube, seam-free by design |
Signature strengths | Shaping, stitch transfer, ribs, whole garment | High output on tubular products, minimal finishing |
Typical products | Sweaters, cardigans, shaped panels, blankets | Hats, socks, sleeves, seamless activewear |
Shaping ability | High; narrowing, widening, fully fashioned construction | Moderate; structure varies across the tube |
Gauge is the number of needles per unit of length on the needle bed, and it decides which yarns a machine can knit and how heavy or fine the finished fabric will be. A machine can only knit yarns within its gauge range, so gauge must be matched to the yarn counts the business actually buys and to the fabric weight the market expects.
Gauge is standardized along with the rest of knitting terminology, so a gauge figure means the same thing across suppliers. The framework for that vocabulary is set out in ISO 7839:2005, the international standard for knitting machine vocabulary and classification, which helps when comparing specification sheets from different sources. The practical rule is simple: coarse gauges knit thick yarns into heavy fabric, fine gauges knit thin yarns into light fabric, and a machine outside your yarn range forces you either to buy new yarn or to accept a fabric you cannot sell.
Two numbers usually appear together. The gauge sets yarn compatibility, while the needle count sets the maximum stitch count and therefore the widest panel the bed can knit. A wider bed in the same gauge lets a factory place several small pieces side by side and use material more efficiently.
Gauge Group | Needle Spacing and Yarn | Typical Products |
Coarse or bulky | Widest spacing; thick wool blends, mohair, roving yarns | Heavy winter sweaters, chunky cardigans, blankets, rugs |
Medium | Moderate spacing; the most versatile range for wool, cotton, and blends | Commercial pullovers, cardigans, workwear, school knits |
Fine | Narrow spacing; thin yarns that need careful tension control | Lightweight fashion knits, loungewear, fine jacquards, technical panels |
Once architecture and gauge are fixed, three specifications separate otherwise similar machines: the number of knitting systems, the working width, and the supported knitting capabilities. Together they determine how fast the machine runs, how large a piece it can knit, and how much finishing labor a product needs, which is what actually drives cost per garment.
These are the specs where datasheets differ most, and where a factory can accidentally buy either more machine than it needs or less than it can use.
A system is an independent knitting position across which the carriage forms a course in a single pass. A single-system machine completes one course per pass, a double-system machine two, and multi-system machines three or more, multiplying output roughly with the system count. More systems mean faster production but also a higher price, more mechanical complexity, and more demanding maintenance, so the count should be sized to realistic order volume.
Working width sets the largest panel the machine can produce and how efficiently small pieces nest. Narrow beds suit sleeves, collars, and shaped parts, while wide beds suit blankets, home textiles, and shops that knit multiple pieces side by side to reduce waste. The right width follows from the largest product in the line plus a margin for selvedge and take-up.
Capability should be matched to the finishing process that follows knitting.
Capability Level | What It Produces | Finishing Impact |
Basic knitting | Plain knit, rib, and simple patterns in flat panels | Panels must be cut and sewn, generating waste and seams |
Fully fashioned shaping | Panels narrowed and widened to the final outline | Reduces cutting and waste and raises perceived quality |
Whole garment | A complete piece knitted in one pass with minimal seams | Removes most sewing labor and supports zero-waste production |
The control system and its software decide how easily a factory can design, store, and reproduce patterns, and how much training an operator needs before the machine becomes productive. Powerful hardware paired with convoluted software wastes capacity, while intuitive software on a modest machine often delivers smoother production.
Software is where the machine meets the design team. It converts specifications into a knittable program, simulates the result before yarn is committed, and stores programs for repeat orders, so it should be evaluated with the people who will use it daily rather than only with the installing engineer.
Look for software that accepts the formats the team already uses, because manual redrawing of every pattern adds hidden labor. Confirm how patterns are stored, backed up, and transferred to the machine, and whether the license allows several workstations. A searchable, reusable pattern library pays for itself on repeat orders.
Simulation lets a designer preview the knitted result and catch structural errors before production starts. On the factory side, monitoring and connectivity allow output, downtime, and error codes to be tracked centrally, which supports planning and maintenance. These features matter most in operations running several machines or multiple shifts.
The right machine depends as much on production scale as on technical specification. A home crafter, a growing workshop, and a large factory face different constraints on budget, floor space, operator skill, and output, so the same specification can be ideal in one setting and wasteful in another.
Scale shapes every other decision, setting how much automation is justified, how much software is worth paying for, and how much downtime the business can absorb. Assessing scale honestly prevents both over-investment and the frustration of outgrowing a machine within a year.
At this scale the priorities are ease of learning, low entry cost, and reliable support for a single operator. Mid-range gauges that accept widely sold yarns work well, and machines with clear interfaces and strong tutorial ecosystems reduce the learning burden. Buyers at this level should favor machines that are still in production, because parts availability matters more than a small saving on a discontinued model.
Here the deciding factors shift to repeatability, output, and consistent quality across shifts. A machine with full digital patterning and at least a double system keeps pace with commercial volumes, and shaping capability reduces the finishing labor that erodes margin. Support quality begins to matter as much as the machine itself, because an unplanned stop has a direct cost.
At industrial scale, throughput, uptime, integration, and total cost of ownership dominate. Multi-system machines, wide beds, and centralized monitoring become worthwhile, and the decision moves from individual machines to a supported platform with documented service levels. Capability such as whole-garment knitting is justified here because it removes finishing labor across very large volumes.
The purchase price is only one part of the investment. Total cost of ownership also includes installation, training, software licenses, spare parts, maintenance, energy, and the cost of downtime, and these ongoing costs often exceed the initial price over the life of the machine. A slightly higher purchase price can be the cheaper choice when it buys reliability, support, and part availability.
Buyers should model the cost per finished piece rather than the cost per machine, because that figure reveals whether a specification is worth its price. A faster machine that produces less waste and less finishing labor frequently repays its premium within a few seasons.
Two machines with similar specifications can carry very different lifetime costs. Weigh the price of replacing needles and cams, the lead time for spare parts, the electricity and compressed air the machine draws, and the training a new operator needs. A payback calculation using real output, waste, and labor figures, not brochure speeds, is the most reliable way to compare options.
Used machines can cut the entry price sharply but carry risks specific to computerized equipment. Software may be outdated or tied to a discontinued platform, parts may be hard to source, and an aging control system can fail expensively. Before buying used, verify that parts are still available, that the software runs on supported hardware, and that a qualified technician can service the controls.
A knitting machine is a long-term production asset, so the supplier relationship is part of the specification. Technical support, operator training, spare parts availability, and response times decide how quickly a factory recovers from a fault and how confidently it can commit to delivery dates.
Because downtime is measured in lost output and missed shipments, support should be evaluated before the purchase rather than discovered afterward.
Ask how support is delivered, how quickly a technician can reach the site, and whether installation and training are included. Structured training shortens the time before a new machine reaches rated output and reduces the operator errors that cause defects and premature wear.
Confirm that consumable and wear parts, especially needles, cams, and sensors, are stocked with reasonable lead times. A preventive maintenance plan that follows the supplier schedule protects far more value than reactive repairs, and machines with locally available parts stay productive longer.
A structured checklist keeps the evaluation objective and comparable across suppliers. Work through it in order, and score every candidate on the same points before deciding.
Confirm the product list and note the yarn counts and fabric weights required.
Select the architecture that fits those products, flat bed or circular.
Fix the gauge range that matches the chosen yarns.
Size the number of systems and the working width to realistic order volumes.
Decide the capability level needed: basic, fully fashioned, or whole garment.
Test the control system and design software with the people who will use them.
Model total cost of ownership, including parts, maintenance, energy, and downtime.
Verify spare parts availability, lead times, and service response.
Confirm installation, training, and warranty terms in writing.
Run a trial or sample production before committing to a full order.
The questions buyers ask most often concern the skills and training a computerized knitting machine demands, and the boundaries of what a single machine can produce. The answers below address those points directly.
Formal hand knitting experience helps but is not essential. Computerized machines work from design files, so the operator mainly prepares programs, loads yarn, monitors production, and handles routine maintenance. Comfort with design software matters more than needle skills. Basic hand knitting knowledge does help when judging yarn behavior and finished fabric, but many successful operators learn those points on the machine rather than before it.
It depends on the machine and the operator's background, but a structured path is typical. Basic operation and simple pattern production can be learned within days to a few weeks, while confident use of shaping, jacquard programming, and troubleshooting usually takes several months of regular production. Factories that invest in formal training and start operators on simple patterns reach stable output faster than those that learn by trial and error.
It depends on the architecture rather than the control system. A flat bed machine with a double needle bed can knit flat panels and, by working the beds together, produce tubular structures such as sleeves and collars. A circular machine knits tubes and can split open some panels, but it cannot match the shaping flexibility of a flat bed machine. Buyers who need both heavily should expect to consider two machines rather than one.
